1994 Sovereign Model I

1994 Hot Spring Sovereign Model I is indicated by the letter in the serial number. for example.

Serial Number  I-342015 the serial number would read I is model  3 third quarter 5 year(1994) and 2015 is the unit number made.


230V Models are Model IH and only difference was a longer 220v cartridge heater which has been replaced with a retrofit 73790 and plumbing kit 71557



Specifications
Dimensions:

6'4" x 7'5" x 29"



Water Capacity:
300 gallons (1344 liters)
Weight:

636 lbs. (288 kg) dry

4,676 lbs. (2,121 kg) filled

Electrical Req:

115v, 20amp circuit



Ozonator:
Fresh Water II
Filter:

71825 (Qty = 3)

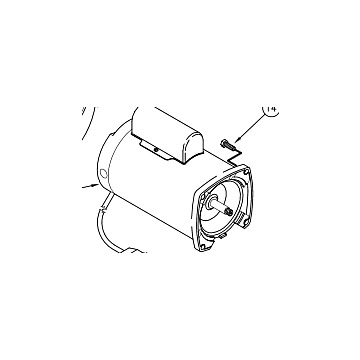

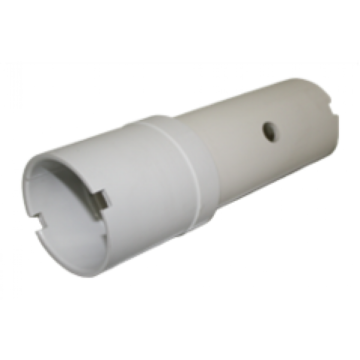

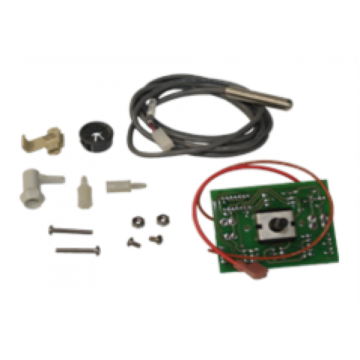

Below is a list of common replacement items. Be sure to see specifications page for parts diagrams or related Videos
