Hot Spring Spas 30592 Drain Valve, Hose Shut-Off

Hot Spring Spas 30592 Drain Valve, Hose Shut-Off

SKU: 30592

Drain valve for Hot Spring Spas. Easy garden hose attachment for quick and easy use.



30592 Drain Valve is for the following models:



Make Model Date Range
Hot Spring Grandee 1995-Current
Hot Spring Vista 2004-2013
Hot Spring Envoy 2004-Current
Hot Spring Vanguard 2001-Current
Hot Spring Grandee NXT 2014-Current
Hot Spring Envoy NXT   2014-Current
Hot Spring Jetsetter NXT   2014-Current
Hot Spring Jetsetter  1995-Current
 Hot Spring Prodigy  1995-Current
 Hot Spring  Sovereign 1995-Current
 Hot Spring Accolade 2005-2006
 Hot Spring  Aria  2007-Current
 Hot Spring Highlife ILE  2003-2003
 Tiger River Bengal  1997-2010
 Tiger River  Siberian 1997-2004
 Tiger River  Caspian 2003-2010
 Tiger River  Sumatran 1994-2010
 Tiger River Tondi  1995-1996
 Tiger River  Bengal Model MM 2005-2010
 Tiger River  Khyber 1994-1996
 Tiger River Manora  1994-1996
 Tiger River Tondi PH 220  1996-1996
 Tiger River  Manora MH 220 1996-1996
 Hot Spot RLX  1998-2002
Hot Spot  SLX 1998-2002
 Hot Spot  Relay 2010-Current
 Hot Spot  Rhythm 2011-Current
 Hot Spot Tempo  2010-Current
 Hot Spot  SX 2011-Current
 Hot Spot TX  2011-Current
Hot Spot  Square  1995-1997
 Hot Spot  SLXtra 2001-2002
 Hot Spot  Sprint 2010-2011
Hot Spot   Dash 2010-2011
 Solana SX  2003-2010
 Solana TX  2000-2010
 Solana RX  2003-2009
 Caldera Palatino  2010-Current
 Caldera Marino  2010-Current
 Caldera Vanto  2011-Current
 Caldera Tarino  2013-Current
 Caldera  Cima 2010-2011
 Caldera  Lina 2010-2011
 Limelight Bolt  2012-Current
 Limelight  Pulse 2008-Current
 Limelight  Gleam 2013-Current
 Limelight Flair  2008-Current
 Limelight Glow  2008-Current

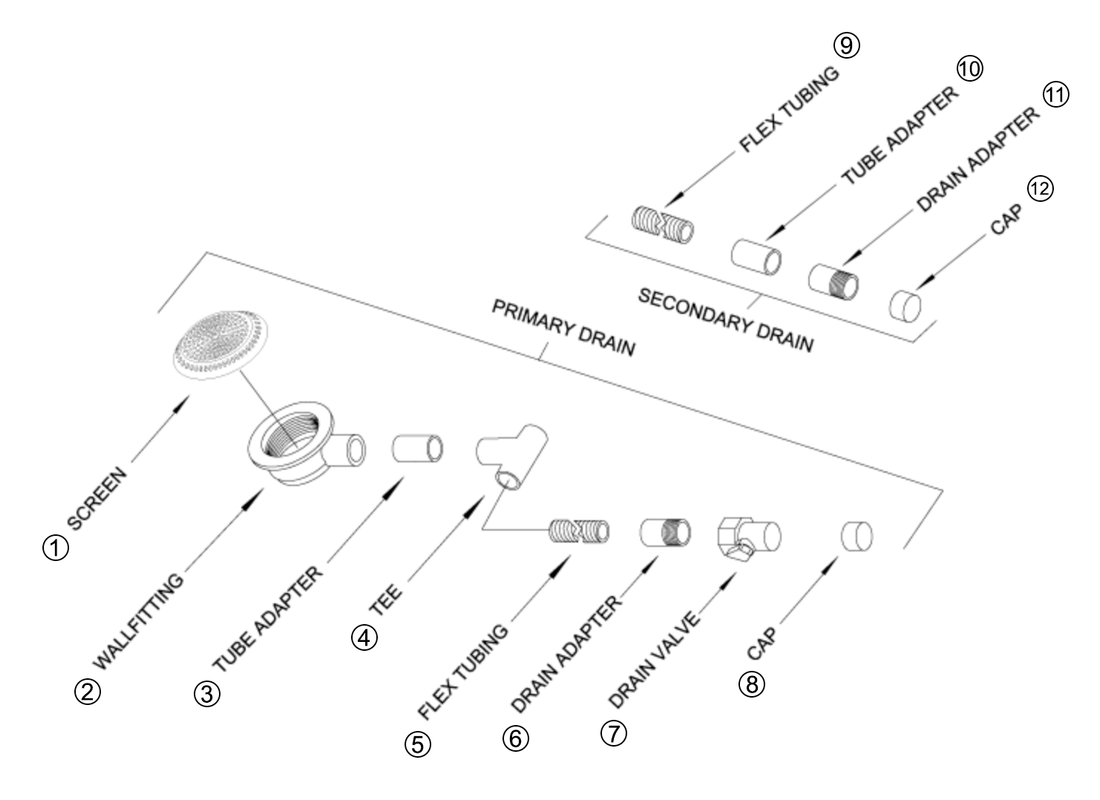

Item Description Part #
1 DRAIN SCREEN, HSS 14-C 77226
2 WALLFITTING, DRAIN, HSS & TR 35911
3 NIPPLE 3/4 X 2 PIPE SLIPXSLI 70346
4 401-007 TEE 3/4 SL 34751
5 HOSE ASSY PVC FLEX 3/4 70312
6 PF M66PB 3/4IN MALE HOSE ADPT 30703
7 VALVE HOSE SHUTOFF, BLACK 30592
8 CAP, HOSE 3/4 FHT W/WSHR 30700
9 HOSE ASSY PVC FLEX 3/4 70312
10 NIPPLE 3/4 X 2 PIPE SLIPXSLI 70346
11 PF M66PB 3/4IN MALE HOSE ADPT 30703
12 CAP, HOSE 3/4 FHT W/WSHR 30700

Item Description Part #
1 Drain Wallfitting 3/4 Inch 35911
2 Bleed Line Nipple 1/4 Inch 30598
3 Flex Tubing 3/4 Inch 70312
4 Bleed Line Nipple 1/4 Inch 30598
5 Adapter 70346
6 Drain Valve 30592
7 Drain Cap With Washer 30700
8 Drain Valve Adapter 3/4 Inch 30703
9 Adapter 70346
10 Drain Valve Knob 33916
11 Drain Valve Knob Screw 32784
12 Coupling 3/4 Inch 30661

Item Description Part #
1 Cap 30700
2 Drain Valve 30592
3 Drain Adapter 3/4 30703
4 Adapter 70346
5 3/4 x 1/4 Adapter 34504
6 Tee 3/4 (SlipxSlipxSlip) 34751
7 Flex Tubing 3/4 70312
8 Wallfitting 35911
9 Drain Valve AR/VV 76072







Item Description Part #
1 Wallfitting Front 30488
2 O-Ring Silicone 30482
3 Wallfitting Rear 30490
4 Wallfitting Rear Drain - 1/2" 71128
5 Wallfitting Rear Drain - 3/4" 35911
6A Coupler 3/4 30661
6B Clear Vinyl Tubing 1/2 70313
7 Flex Tubing 3/4" 70312
8 Adapter 30702
9 Drain Valve 30592
10 Drain Cap 30700
11A Heater Return Screen White 72722
11B Heater Return Screen Taupe 71886
11C Heater Return Screen Cool Gray 72723
11D Heater Return Screen Warm Gray 73296
12 Reducer Bushing 1-1/2" x 3/4" 31420
13 Elbow Street 1-1/2" x 3/4" 30650
14 Reducer Bushing 3/4"x 1/2" 30675
15 Flex Tubing 1/2" 70313
16 Barbed Adapter 1/2" 31218
17 Sprin Clamp 31228
