2002/2003/2004 Caldera Geneva Model GEB or GAA
The Geneva Model was a Utopia or Paradise Series Spa 2002-2004
2002-2004 Caldera Geneva Model GEB is indicated by the letter in the serial number. for example.
Serial Number GEB-3D2015 the serial number would read GEB is model 3 third quarter D year(2002) and 2015 is the unit number made.
Serial Number GEB-3E2015 the serial number would read GEB is model 3 third quarter E year(2003) and 2015 is the unit number made.
Serial Number GEB-3F2015 the serial number would read GEB is model 3 third quarter F year(2004) and 2015 is the unit number made.
If model is a paradise series, Model would me GAA instead of GEB
|
Specifications
|
|
|
Dimensions:
|
7'5" x 7'5" x 38" Seating Capacity = 6 |
|
Water Capacity:
|
475 gallons
|
|
Weight:
|
Dry: 920 lbs. Filled: 5,915 lbs. |
|
Electrical Req:
|
230v, 30 or 50 amp single phase GFCI protected circuit
|
|
Ozonator:
|
Monarch CD Ozone (Factory Installed)
|
|
Filter: (1 ea.)
|
|
|
Spa Frog ® Water Care
|
Cartridge Ready
|
|
LED Lighting System
|
Spa Glow ®, multi-zone system, interior & exterior (Dimmable)
|
|
|
|

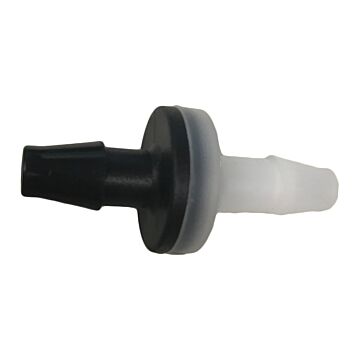

Below is a list of common replacement items. Be sure to see specifications page for parts diagrams or related Videos
