77118 Heater Relay Board 2009-2012

77118 Heater Relay Board 2009-2012

SKU: 77118

$187.74

Customers Who Bought This Also Bought

Check items to add to the cart or select all

  1. 77656 Main Board for Orca Box 2009-2012
    77656 Main Board for Orca Box 2009-2012
    $409.35
    Add to Wishlist

This is an IQ2020 heater relay board, and model years range form 2009-2012.

77118 Heater Relay Board 2009-2012 is for the following models:



Make Model Date Range
Hot Spring Grandee 2009-2012
Hot Spring Vista 2009-2012
Hot Spring Envoy 2009-2012
Hot Spring Vanguard 2009-2012
Hot Spring Jetsetter 2009-2012
Hot Spring Prodigy 2009-2012
Hot Spring Sovereign 2009-2012
Hot Spring Aria 2009-2012
Tiger River Bengal 2009-2010
Tiger River Caspian 2009-2010
Tiger River Sumatran 2009-2010
Tiger River Bengal Model MM 2009-2010
Caldera Tahitian 2009-2012
Caldera Niagara 2009-2012
Caldera Geneva 2009-2012
Caldera Cantabria 2009-2012
Caldera Kauai 2009-2012
Caldera Salina 2011-2012
Caldera Martinique 2009-2012
Caldera Elation 2009-2010
Limelight Bolt 2012
Limelight Pulse 2009-2012
Limelight Flair 2009-2012
Limelight Glow 2009-2012

















Item Description Part #
1 Kit CBA IQ2020 HSS 76082
2 Kit Control Head HSS '09 74959
3 Clamp Romex 3/4 30105
4 Plug Hole 0.875 36043
5 Bushing Strain Relief 3/8" 30099
6 Strain Releif 3/8" 7k-2 30098
7 Plug Hole 0.50" 36044
8 Thermostor Hi-Limit 39525
9 Thedrmostor Control 39530
10 Kit Heater Board Replacement 76071
11 Fuseholder 34506
12 Fuse 2 AMP 250V 34934
13 Program Jumper Shunt .100 36021
14 Kit 12C Comm HUB 8 Port 74150
15 Power Jumper 2 Pin 39192
16 Power Jumper 3 Pin 39193









Item Description Part #
1 Kit CBA Advent Orca Cal 76288
2 Kit Control Head Cal 76269
3 Clamp Romex 3/4" 30105
4 Plug Hole 0.875" 36043
5 Bushing Strain Releif 3/8" 30099
6a Kit Pump Cord 14/4 2SPD STRS 72461
6b Kit Pump Cord 14/3 1SPD STRS 72462
7 Strain Releif 3/8" 7k-2 30098
8 Cord Circ Pump 71434
9 Ozone Receptacle 72474
10 Thermistor Hi-Limit 72492
11 Thermistor Control 72493
12 Kit Heater Board Replacement 76071
13 Fuseholder 34506
14 Fuse 2 AMP 250V 34934
15 Program Jumper Shunt .100 36021
16 Kit 12C Comm Hub 8 Port 74150
17 Power Jumper 2 Pin 39192
18 Power Jumper 3 Pin 39193

 Item  Description  Part #
 1  MAIN BOARD  76998
 2  JUMPER, POWER 2-PIN T-BLOCK, JUMPER, POWER 3-PIN T-BLOCK  39192 & 39193
 3  HEATER RELAY BOARD  77118
 4  STRAIN RELIEF, METAL CLAMP  30105
 5  PLUG, 0.875" HOLE  36043
 6a  STRAIN RELIEF, SMALL CIRC PUMP  30098
 6b  STRAIN RELIEF, MEDIUM JET PUMP  30099
 7  PLUG, 0.5" HOLE  36044
 8  FUSE, 2A 250V SLO BLO  34934
 9  FUSE HOLDER, CONTROL BOX 60HZ  34506
 10  I2C COMM, 5-PORT  74150
 11  THERMISTOR ASSY CONTROL EBIC  39205
 12  THERMISTOR ASSY HI-LIMIT EBIC  39204
 13  JUMPER, PROGRAM 2-PIN  36021

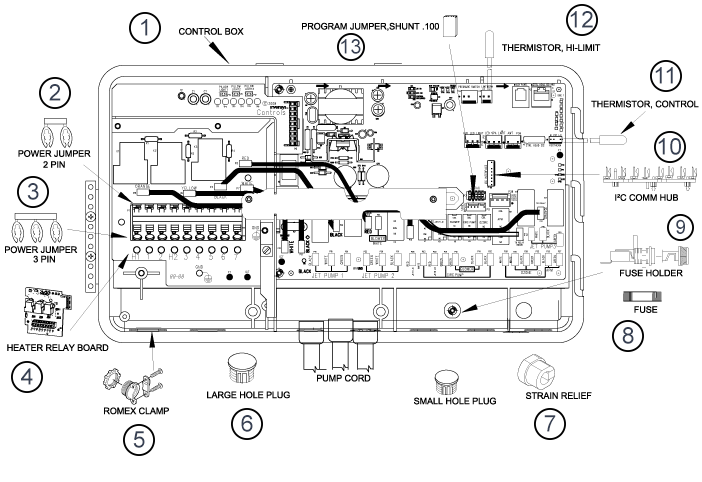

 Item  Description  Part #
 1  CONTROL BOARD,ADVENT ORCA 60HZ  77656
 2  JUMPER, POWER 2-PIN T-BLOCK  39192
 3  JUMPER, POWER 3-PIN T-BLOCK  39193
 4  HEATER RELAY BOARD, ORCA 50/60  77118
 5  STRAIN RELIEF, METAL CLAMP  30105
 6  PLUG, 0.875" HOLE  36043
 7

 STRAIN RELIEF, SMALL CIRC PUMP

STRAIN RELIEF, MEDIUM JET PUMP

30098

30099
 8  FUSE, 2A 250V SLO BLO  34934
 9  FUSE HOLDER, CONTROL BOX 60HZ  34506
 10  I2C COMM, 5-PORT  74150
 11  THERMISTOR, CONTROL BULLET  72493
 12  THERMISTOR, HI LIMIT ADVENT  72492
 13  JUMPER, PROGRAM 2-PIN  36021



Item Description Part #
1 Kit CBA 1Q2020 HSS 78039
2 Kit Control Head LL 76845
3 Clamp Romex 3/4 30105
4 Plug Hole 0.875" 36043
5 Bushing Strain Releif 3/8" 30099
6 Strain Releif 3/8" 7k-2 30098
7 Plug Hole 0.50" 36044
8 Thermistor Hi-Limit 39204
9 Thermistor Control 39205
10 Kit Heater Board Replacement 77118
11 Fuseholder 34506
12 Fuse 2 Amp 250v 34934
13 Program Jumper Shunt .100 36021
14 Kit 12C Comm Hum 8 Port 74150
15 Power Jumper 2 Pin 39192
16 Power Jumper 3 Pin 39193
