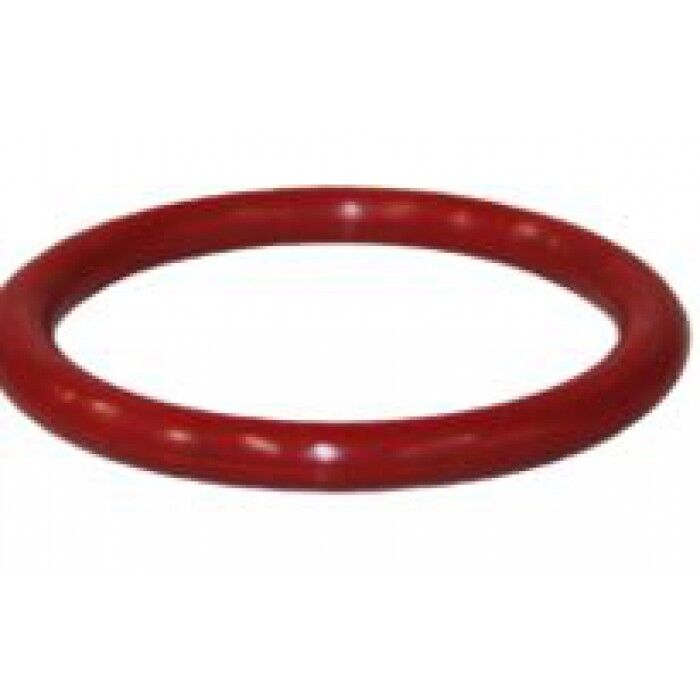

73271 Kit Midjet O-Ring

$3.24
In stock
SKU
73271
Add to Wish List
In stock

Add to wishlist
73271 Kit Midjet O-Ring
73271 Kit Midjet O-Ring

The MidJet is a powerful jet that combines the pressure of several jets into a substantial stream.

The air control valve is used to control the intensity of the MidJet. To adjust the intensity, turn the air control lever clockwise to increase the intensity (air) or counter-clockwise to decrease the intensity (air).



Removal
  1. Turn the retaining ring counterclockwise to remove.
  2. Remove the eyeball and retainer..
  3. Remove the orifice and from the rear retainer.
  4. Remove the front wallfitting.
  5. Access the rear portion of the shell.
    NOTE: Removal of wood and foam may be required.
  6. Remove the rear wallfitting assembly and o-ring from the spa's plumbing.
  7. To replace the MidJet, reverse steps 1 to 6.



Specifications

Item Description Part #
1 Kit Mid Jet Body 73099
2 Kit Mid Jet O Ring 73271
3 Kit Mid Jet Orifice & Retain 73102
4 Kit Wallfitting Mid Jet 73101
5a Kit Eye Retain Mid Jet C Gry 73267
5b Kit Eye Retain Mid Jet W Gry 73270
6a Kit Eyebal Mid Jet C Gry 73265
6b Kit Eyeball Mid Jet W Gry 73269
7a Kit Mid Jet Rotary C Gry 73377
7b Kit Mid Jet Rotary W Gry 73376
8a Kit Jet Face Mid Jet C Gry 73266
8b Kit Jet Face Mid Jet W Gry 73268
8c Kit Jet Face Mid Jet Escutcheon C Gray 73899
8d Kit Jet Face Mid Jet Escutcheon W Gray 73811
