74723 Control Box Relay Coil
Add to Wish List

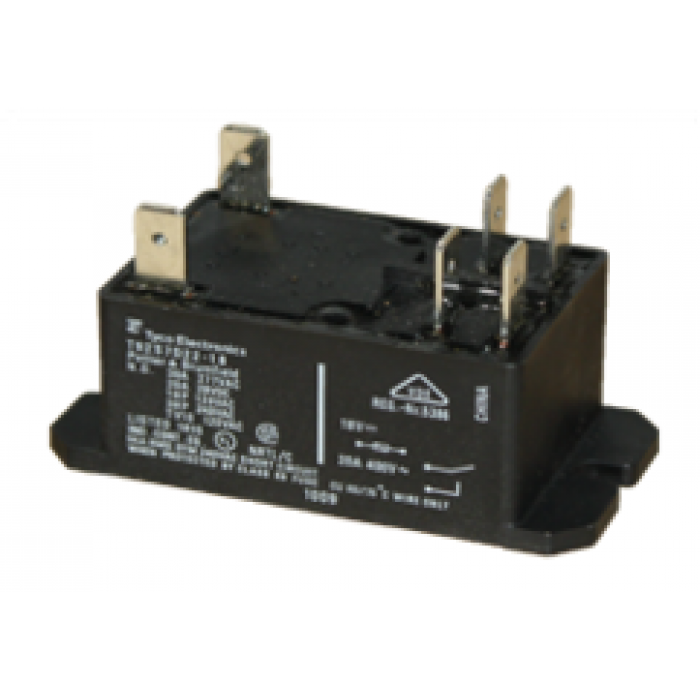

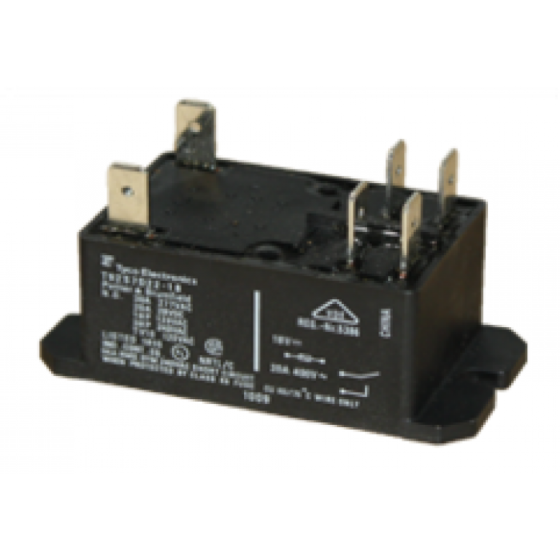

This is a 30 amp, 18 volt coil relay for IQ2000 control boxes. The relay coil will be found in the upper left corner of the control box.
74723 Control Box Relay Coil is for the following models:
Make |
Model |
Date Range |
Hot Spring |
Grandee |
1994-2000 |
Hot Spring |
Jetsetter |
1994-2000 |
Hot Spring |
Prodigy |
1994-2000 |
Hot Spring |
Sovereign |
1994-2000 |
Hot Spring |
Highlife |
1994-1996 |
Hot Spring |
Classic |
1994-2000 |
Hot Spring |
Sovereign IH 200v |
1994-1996 |
Hot Spring |
Classic FH 220v |
1994-1996 |
Tiger River |
Bengal |
1997-2000 |
Tiger River |
Siberian |
1997-2000 |
Tiger River |
Sumatran |
1997-2000 |
Specifications

Item |
Description |
Part # |
1 |
Contactor 1 Pole AC Coil |
30198 |
2 |
Antistatic Capacitor |
20088 |
3 |
Contactor 3 Pole AC Coil |
30200 |
4 |
Bridge Rectifier |
10489 |
5 |
Relay 2 Pole DC Coil |
70297 |
6A |
Surge Protector Term Block |
31458 |
6B |
Surge Protector Relay |
35628 |
7A |
Contactor 2 Pole AC Coil |
30199 |
7B |
Contactor 2 Pole DC Coil |
75059 |
8 |
Relay Double Pole Double Throw |
70298 |
9 |
Quick Connect Terminal Kit** |
75046 |
10a |
Relay 2 Pole 12VDC Coil |
34321 |
10b |
Relay 2 Pole 18VDC Coil |
74723 |

Item |
Description |
Part # |
1A |
Control Head Replacement |
71260 |
1B |
Control Head G & S |
** |
1C |
Control Head F & I |
** |
1D |
Control Head H & J |
** |
1E |
Control Head Replacement |
71920 |
2A |
IQ-2000 Control Box |
71382 |
2B |
IQ-2000 Control Box |
71485 |
2C |
IQ-2000 Control Box (canadian) |
71384 |
2D |
IQ-2000 Control Box (canadian) |
71487 |
3 |
Strain Relief 10/3 |
36022 |
4 |
Clamp Romex 3/4 |
30105 |
5 |
Cord Assy GFCI |
20120 |
6 |
Cord 14/3 XP Jet Pump |
71416 |
7 |
Bushing Strain Releif 3/8" |
30098 |
8 |
Plug Hole 0.875" |
36043 |
9 |
Cord Circ Pump Replacement '97 |
71434 |
10 |
Receptacle Assy Ozone |
72724 |
11 |
Kit HSS Lampholder '95-'00 |
71292 |
12 |
Plug Hole 0.50" |
36044 |
13A |
Cable Assy Panel Interface |
34931 |
13B |
Cable Assy Panel Interface |
71755 |
14 |
Power Jumper Terminal Block |
71377 |
15 |
Screw Terminal Block |
71529 |
16 |
Relay 2 Pole 18VCD |
74723 |
* |
Screw IQ 2000 Cover |
36676 |
* |
Screw Mounting Bracket |
36898 |
* |
CBA Mounting Bracket |
36018 |
* |
CBA Mounting Bracket (Classic) |
36019 |
* |
Fuseholder (Canada Only) |
34506 |
* |
Fuse 2 Amp 250V (Canada Only) |
34934 |
* |
Screw Receptacle for Control Panel |
34481 |
|
