Hot Spring Spas 72994 Wet End Kit Wavemaster 7000

Name: Hot Spring Spas 72994 Wet End Kit Wavemaster 7000
Brand: Hot Spring Spas
SKU: 72994
Price: 215.47 USD
Availability: InStock

$215.47

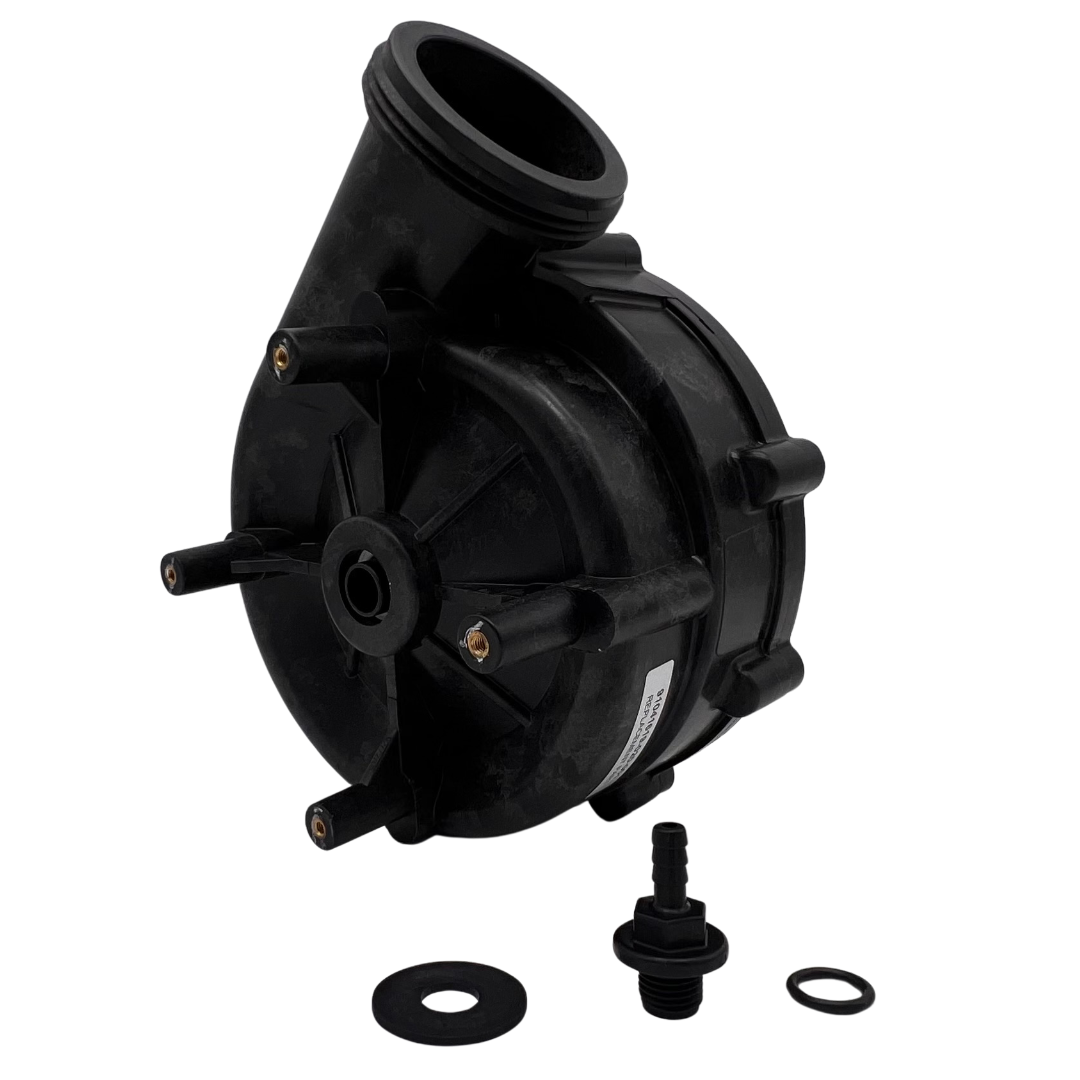

Wet end kit for the Wavemaster 7000.

For pump w/ vendor code 4081

Usually Ships Within 2 Business Days

Buy with Confidence:

Customers who bought this also bought

$59.99

Out of stock

Product Description

Wet end kit for the Wavemaster 7000.

Jet pumps have a motor and a wet end. This is the complete wet end of the jet pump.

Correct wet end to vendor "4081" on jet pump. Please make sure this is the correct wet end for your spa.

This kit includes a volute, a cover for the volute, a volute o-ring, screws, a wear ring, an impeller and a shaft seal.

Hmax 19m, Qmax 600 L/min

115/230V, 60Hz, 17/8.5A

1.25kW/1.65HP

3450t/min, PH1, FR48, Class 155 (F), Code C

Time CONT, Crun 30 uF/300V, Cst 50 uF/300V

AMB 50 °C, Max water temp: 50 °C

Thermally Protected

Product Specifications

Hot Spring Spas

Item	Decsription	Part #
1A	Motor 1.65 HP X (Discontinued)	71399**
1B	Motor 1.5 HP XP (Part Not Available Use Following Part #)	71699
1C	Motor 2.0HP 1SP (Watkins Recommends Replacing entire Jet Pump)	**
1D	Motor 2.0HP 2SP (Watkins Recommends Replacing entire Jet Pump)	**
1E	Motor 2.5 HP 1SP	71402**
1F	Motor 2.5 HP 1SP (Watkins Recommends Replacing entire Jet Pump)	**
2A	Wet End Kit 1.65 HP	72994**
2B	Wet End Kit 1.5 HP	72993**
2C	Wet End Kit 2.0 HP 1SP	72995**
2D	Wet End Kit 2.0 HP 2SP	72995**
2E	Wet End Kit 2.5 HP 1 SP	72996**
2F	Wet End Kit 2.5 HP 2 SP	72996**
3	Kit Shaft Seal Assy	71447**
4A	Impeller 1.65 HP XP	71403**
4B	Impeller 1.5 HP XP (Part Not Available Use Following Part #)	71699
4C	Impeller 2.0HP 1SP (Watkins Recommends Replacing Entire Jet Pump)	**
5	Wear Ring XP	71409**
6	O-Ring Volute XP	71410**
7	Screw 8-32 X 5/8 (XP Volute)	71413
8	Drain Fitting W/O-Ring	32267
9	O-Ring Drain Nipple XP	N/A
10	Kit Base Grommet (Quantity 4)	72349
11	Washer FLT 5/16 x 3/4 SS	30413
12	Screw 1/4-20 x 1-1/4 PH PLP PLTMS	30018
13A	Manifold XP Emerson	N/A
13B	Manifold XP Magnetek	N/A
*	Cord 14/3 XP Pump	71416
*	Jet Pump 1.65 HP XP	71699
*	Jet Pump 1.5 HP XP (Part Not Available Replace Entire Jet Pump Use Part #)	71699
*	Jet Pump 2.0 HP 1SP	72194
*	Jet Pump 2.0 HP 2SP	72197
*	Jet Pump 2.5 HP 1SP	72196
*	Jet Pump 2.5 HP 2 SP	73023
