76082 Hot Spring IQ Box 2009-2012

$485.36
In stock
SKU
76082
Add to Wish List
In stock

Discontinued
Add to wishlist
76082 Hot Spring IQ Box 2009-2012
76082 Hot Spring IQ Box 2009-2012

Discontinued

Use 78039

This control box cannot be used for older model hot tubs.

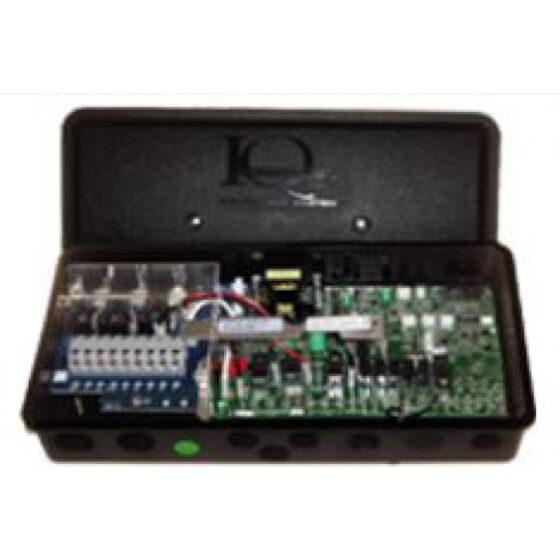

This control box consists of a main circuit board and a heater relay board.

76082 Hot Spring IQ Box 2009-Current is for the following models:



Make Model Date Range
Hot Spring Grandee 2009-2012
Hot Spring Vista 2009-2012
Hot Spring Envoy 2009-2012
Hot Spring Vanguard 2009-2012
Hot Spring Jetsetter 2009-2012
Hot Spring Prodigy 2009-2012
Hot Spring Sovereign 2009-2012
Tiger River Bengal 2009-2010
Tiger River Caspian 2009-2010
Tiger River Sumatran 2009-2010
Limelight Bolt 2012
Limelight Pulse 2009-2012
Limelight Flair 2009-2012
Limelight Glow 2009-2012
Specifications



Item Description Part #
1 Kit CBA 1Q2020 HSS 76082
2 Kit Control Head LL 76557
3 Clamp Romex 3/4 30105
4 Plug Hole 0.875" 36043
5 Bushing Strain Releif 3/8" 30099
6 Strain Releif 3/8" 7k-2 30098
7 Plug Hole 0.50" 36044
8 Thermistor Hi-Limit 39525
9 Thermistor Control 39530
10 Kit Heater Board Replacement 76071
11 Fuseholder 34506
12 Fuse 2 Amp 250v 34934
13 Program Jumper Shunt .100 36021
14 Kit 12C Comm Hum 8 Port 74150
15 Power Jumper 2 Pin 39192
16 Power Jumper 3 Pin 39193
