73814 Soothing Seven Jet Face, Warm Grey

$83.12
In stock
SKU
73814
Add to Wish List
In stock

Add to wishlist
73814 Soothing Seven Jet Face, Warm Grey
73814 Soothing Seven Jet Face, Warm Grey

Soothing Seven Jet Face, Warm Grey

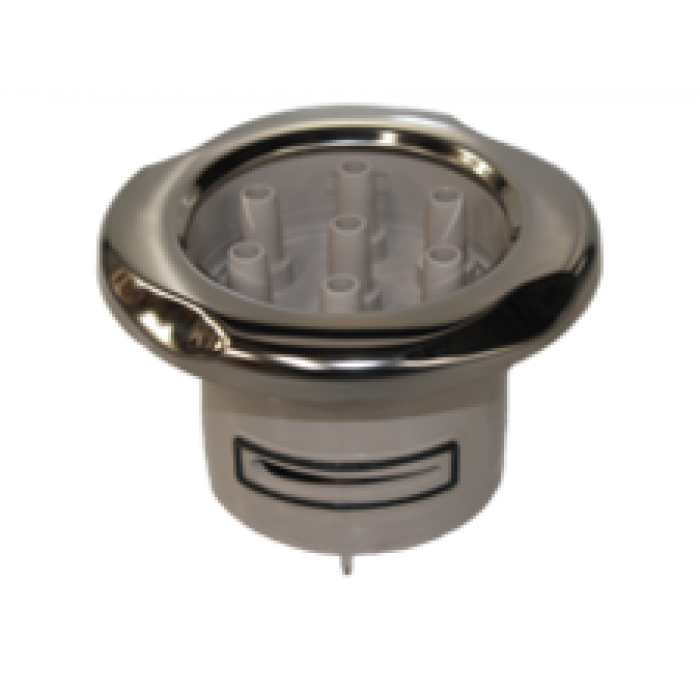

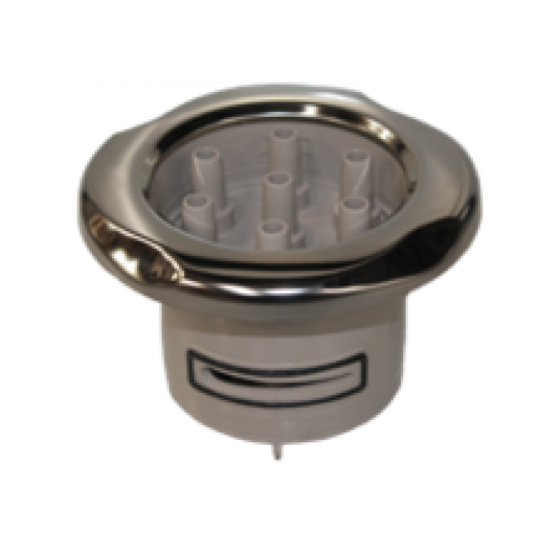

This part is a replacement soothing seven jet face for select Hot Spring hot tub models. The Soothing 7 Jet is a larger jet with seven outlets. The seven outlets are designed to massage the tight muscles of the upper back and shoulders.

The intensity of the Soothing 7 Jet increases when more air is injected into the jet. Turning the faceplate can control the amount of air reaching an individual jet. To adjust the air, turn the faceplate clockwise to increase the air, or counter-clockwise to decrease the air. Compatible with 2006 to 2011 Hot Spring Highlife spa models.

*Check specs section for full list of compatible models and years.

Specifications

Make Model Date Range
Hot Spring Grandee 2006-2011
Hot Spring Vista 2006-2011
Hot Spring Envoy 2006-2011
Hot Spring Vanguard 2006-2011
Hot Spring Jetsetter 2006-2011
Hot Spring Prodigy 2006-2011
Hot Spring Sovereign 2006-2011
Hot Spring Aria 2007-2011

l

Item Description Part number
1 kit wall fitting 71362
2a Jet Face White 71366
2b Jet Face C Grey 71367
2c Jet Face W Grey 73293
2d Jet Face Taupe 72486
2e Jet face escutcheon c grey 73902
2e Jet face escutcheon w grey 73814
3 Gasket 36535
4 o ring 35986
5 Front Wall Fitting 36087
6 o-ring 36153




Removal
  1. Open or remove the spa cover.
  2. Remove the jet by grasping the jet faceplate and pulling it away from the spa shell.
  3. With jet in hand, two o-rings should be on the rear portion of the faceplate. If either o-ring is not present, inspect the inside of the front wallfitting and remove the missing o-ring.
  4. To reinstall the jet, reverse steps 1 to 3.
    Important: Make sure that the o-rings are properly seated.



Removal
  1. Open or remove the spa cover.
  2. Remove the jet by grasping the jet faceplate and pulling it away from the spa shell.
  3. With jet in hand, two o-rings should be on the rear portion of the faceplate. If either o-ring is not present, inspect the inside of the front wallfitting and remove the missing o-ring.
  4. To reinstall the jet, reverse steps 1 to 3.
    Important: Make sure that the o-rings are properly seated.
