The jet pump provides water pressure for the hydrotherapy system by recirculating water from the spa, drawing it through the skimmer and filtration system, and forcing the water through the fixed jets, rotary jets and jetstream. These pumps are designed for the presence of water at all times.
The opening at the bottom of the door is a vent for the heat generated by the operation of the jet pump. The vent will eliminate the problem of overheating pump motors and protect the other components from excessive heat. It is important that the vent opening be kept clear at all times. If the vent opening becomes obstructed, overheating of the jet pump may occur.

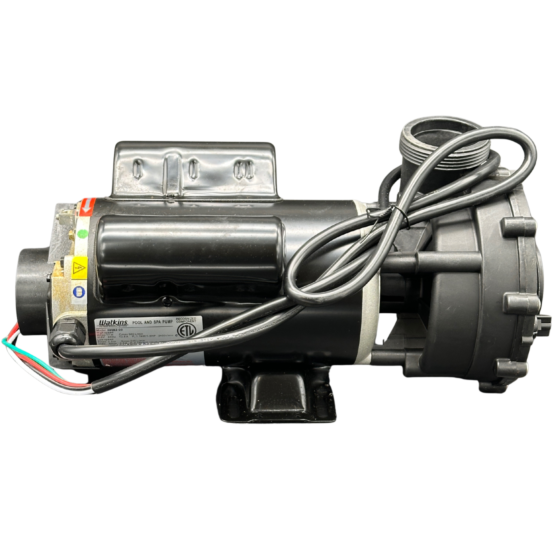

72201 Jet Pump 1.5hp 2 speed is for the following models:
Make
Model
Date Range
Hot Spot
SX
2011-Current
Hot Spot
SLXtra
2001-2002
Hot Spot
Sprint
2010-2011
Hot Spot
Dash
2010-2011
Hot Spot
Tobago
2003-2005
Hot Spot
Trinidad
2003-2005
Solana
SX
2006-2010
Solana
TX
2006-2010
Solana
RX
2006-2009
Caldera
Aventine
2010-2015
Caldera
Cumberland
2002-2009
Caldera
Cascade
2000-2003
Caldera
Tarino
2013-Current
Caldera
Cima
2010-2011
Caldera
Lina
2010-2011
Caldera
San Gabriel
2008
Caldera
Oasis
2001-2007
**Please note if your tub previously used a pump with 1-capacitor, plumbing may need to be redone for a 2-capacitor pump**
Remove the copper bonding wire from the bonding lug on the jet pump motor. Drain the pump by removing bleedline from the drain barbfitting or plug.
Turn the jet pump unions counterclockwise on the intake and discharge of the jet pump to disconnect them from the plumbing. Note: Make sure to save the union o-rings.
Remove the mounting bolt(s) securing the jet pump to the equipment compartment floor.
Remove the jet pump from the equipment compartment.
To reinstall the jet pump, reverse steps 1 to 9. Important: Make sure that the jet pump union o-rings are properly seated when re-tightening the unions.
