Out of stock

71036 Compression Fitting

Name: 71036 Compression Fitting
Brand: Watkins
SKU: 71036
Price: 20.92 USD
Availability: OutOfStock

$20.92

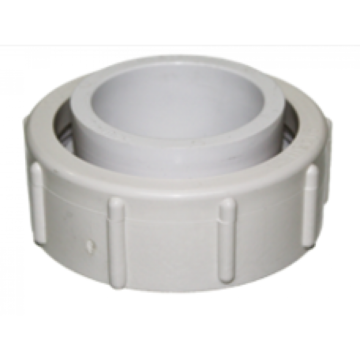

This part is a replacement PVC compression fitting for select hot tubs and Endless Pool models. Pool and spa 2" coupling, allowing the best fitment for your plumbing system.

Usually Ships Within 2 Business Days

Buy with Confidence:

Customers who bought this also bought

Product Description

Compression Fitting

This part is a replacement PVC compression fitting for select hot tubs and Endless Pool models. Pool and spa 2" coupling, allowing the best fitment for your plumbing system.

The O-ring should be used to secure the fitment. Compatible with 1994 to current Hot Spring Highlife, Wavemaster, Limelight, Solana, Tiger River and Endless Pool models.

*Check specs section for full list of compatible models and years.

Product Specifications

Watkins

Make	Model	Date Range
Endless Pools	E2000-58	2017-Current
Endless Pools	E500-52	2016-Current
Endless Pools	E500-58	2016-Current
Endless Pools	E700-52	2016-Current
Endless Pools	E700-58	2016-Current
Endless Pools	X200-50	2016-Current
Endless Pools	X500-50	2016-Current

Item	Decsription	Part #
1	JET PUMP, 1.65HP 1SP DUAL 60HZ	71699
2	GROMMET, JET PUMP BASE 97-C	72349
3	WASHER FLT 5/16X3/4 SS	30413
4	SCW 1/4-20X1-1/2 MS PH PLP SS	30018
5	POWER CORD	N/A
6	EXHAUST HOSE, JET PUMP 01-C	72344
7a	UNION, PUMP	1119401
7b	2" SOC.90 DEG SWEEP PUMP UNION	301488
7c	429-020 CPLG 2IN SLXSL	30665
7d	O-RING, COMPRESSION FITTING	34447
7e	HOSE, PVC FLEX 2" X 36"	70308
7f	FITTING COMPRESS 2 W/O-RING	71036
7g	FITTING COMPRESS 2X1.5 W/ORING	71037
7h	FITTING COMPRE 1.5W/O-RNG	71038
7i	SPLIT NUT, 2" JET PUMP	72072
8a	SHAFT SEAL ASSEMBLY	71447
8b	SEAL, SHAFT LX JET PUMP #3536	77363
9a	ADAPTER 1/2IN HOSE 0675-063	33732
9b	ADAPTER ELL, 1/4-MIPT 1/2-BARB	39438
10a	WET END 1.65 HP 60HZ ST D	72994
10b	WET END 1.5/1.65 HP 60 HZ L-03	77711

Item	Description	Part #
1A	447-015 CAP 1-1/2 SL	30693
1B	447-020 CAP 2IN SL	30694
2	449-015 PLUG 1-1/2IN	30699
3	FITTING COMPRESS 2 W/O-RING	71036
4A	CLAMP, 3/4IN VINYL TUBING	300055
4B	CLAMP UNIVERSAL .405-485	31134
4C	CLAMP,UNIVERSAL .685-.775	31228
4D	CLAMP, WIRE #CP-9	34465
5A	WYE 2INX2INX2IN	300033
5B	475-010 WYE 22.5DEG 1IN SSS	38506
6	FTG BLEEDLINE WHITE	30598
7	CAP, HOSE 3/4 FHT W/WSHR	30700
8A	449-005 PLUG 1/2	30696
8B	449-010 PLUG 1IN SPIG	30698
9	MANIFOLD PLUG 3/4IN SPIG	38398
10	475-21131T WYE 1-1/2SPx1Sx1S	34459
11	WYE 1/2IN BARB	33028
12A	420-015 CROSS 1-1/2IN SLIP	33984
12B	420-020 CROSS 2IN SL	38674
13A	TAIL PIECE 2IN 20-1030B	33322
13B	TAIL PIECE, 2x1-1/2, SP/SL	37726

Item	Description	Part #
1	Manifold Magnetek	71415
2	Motor Mag 48FR 2.0 HP 8.5/2.8A 230V (Order Complete Pump)	**
3	Fitting Compress 2" W/ O-Ring	71036
4	Volute 48FR	71693
5	Kit Shaft Seal Assmebly	71447
6	Impeller 2.0 HP	71405
6B	Impeller 2.5 HP	71406
7	Wear Ring	71409
8	O-Ring Volute	71554
9	Cover Suction	71696
10	Drain Fitting W/ O-Ring	71595
11	Cal Pump Hose Duct	72344
12	Mount Rubber Pump	017066
13	Cord 2-SPD 14/4 60"	72461
14	Screw 8-32 x 5/8 (Volute)	71413
15	O-Ring Compress Fitting 2"	34447
16	O-Ring Drain	71594
*	Pump Complete 2 HP 230V 2 SPD	72197
*	Pump 2.5 HP 230V 2 SPD	73023

Item	Description	Wavemaster 7000	Wavemaster 9000
1A	Motor 1 H.P	N/A	-
1B	Motor 2 H.P.	-	*******
1C	Motor 1993 Grandee ONLY	-	-
2	Bolt Hex	70395	70395
3	Washer Flat -3/8"	70396	70396
4A	Base	N/A	N/A
4B	Base Jet Pump	-	-
5	Seal Plate	70399	70399
6	Shaft Seal	70400	70400
7A	Impellor 1 H.P.	70401	-
7B	Impellor 2 H.P.	-	N/A
8	Diffusor	70408	70408
9	O-Ring	70409	70409
10	Screw Diffuser	70404	70404
11	O-Ring	70405	70405
12	Nut	N/A	N/A
13	Clamp	70406	70406
14	Bolt Hex	70394	70394
15	Cover	70407	70407
16	Flange Suction	70410	70410
17	Barbed Fitting	32267	32267
18	Clamo 1/4"	31134	31134
19	Vinyl Yubing 1/4"	70318	70318
20	Bolt Hex	70398	70398
21A	Fitting w/ O-ring 2" x 1-1/2"	71037	71037
21B	Fitting w/O-Ring 2" x 2"	71036	71036
22	PVC Flex Tubing 2"	70309	70309
23	Screw Im,pellor (Reverese Thread)	70403	70403
24	O-Ring	34447	34447
25	Hose Jet Pump Duct	N/A	N/A
26	Shroud	N/A	N/A
27	TailPiece Inlet	70411	70411
*	Pump Complete	-	34462

Item	Description	Part #
1	JET PUMP, 2.5HP 1SP 230V 60HZ	72196
2A	WET END 2.5 HP 60HZ ST D	72996
2B	WET END 2.5 HP 60 HZ, L-03	77713
3	DRAIN FITTING, JET PUMP 1/4IN	32267
4A	UNION, PUMP	1119401
4B	2" SOC.90 DEG SWEEP PUMP UNION	301488
4C	429-020 CPLG 2IN SLXSL	30665
4D	O-RING, COMPRESSION FITTING	34447
4E	HOSE, PVC FLEX 2" X 36"	70308
4F	ITTING COMPRESS 2 W/O-RING	71036
4G	FITTING COMPRESS 2X1.5 W/ORING	71037
4H	FITTING COMPRE 1.5W/O-RNG	71038
4I	SPLIT NUT, 2" JET PUMP	72072
5A	SHAFT SEAL ASSEMBLY	71447
5B	SEAL, SHAFT LX JET PUMP #3536	77363
6	GROMMET, JET PUMP BASE 97-C	72349
7	WASHER FLT 5/16X3/4 SS	30413
8	SCW 1/4-20X1-1/2 MS PH PLP SS	30018
9	KIT, PUMP CORD 14/3 1SPD STRS	72462
10	EXHAUST HOSE, JET PUMP 01-C	72344
