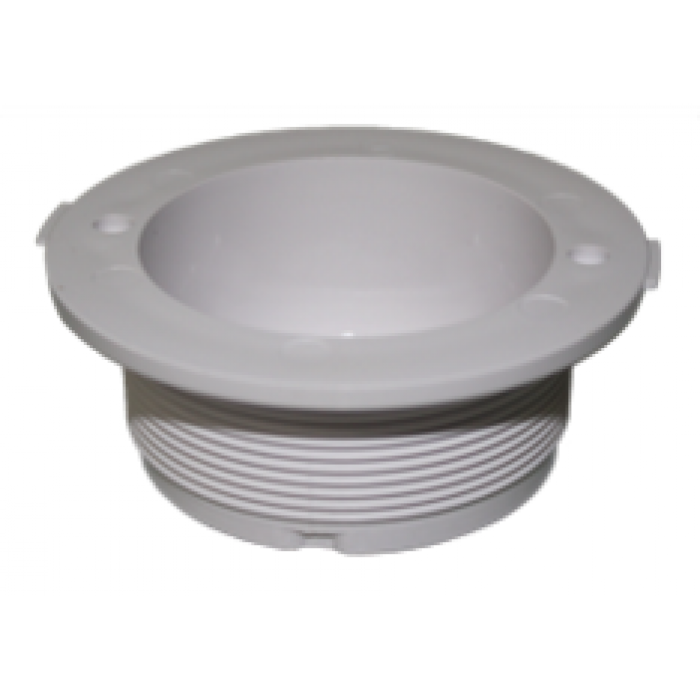

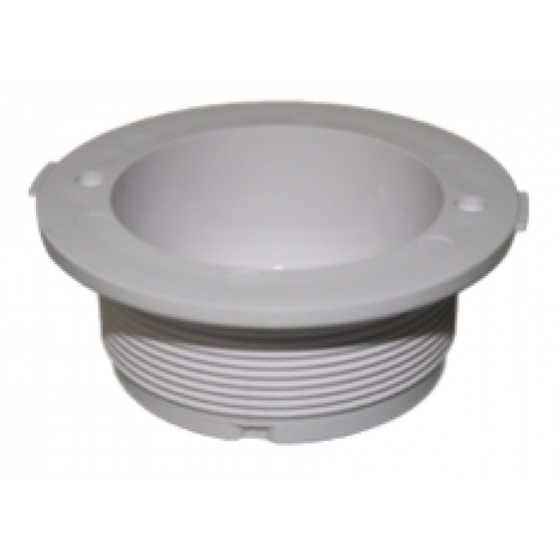

32420 Jet Wall Fitting Front

$4.86
In stock
SKU
32420
Add to Wish List
In stock

Add to wishlist
32420 Jet Wall Fitting Front
32420 Jet Wall Fitting Front

This piece is a wall fitting nut used on the jet body of the spa jets. Secure o ring onto the wall fitting to prevent water leakage in the jets.

The Jetstream is a powerful jet that combines the pressure of several jets into a substantial stream. The Jetstream is located in the footwell of the spa to provide a massage to the feet and calves.

The air control valve is used to control the intensity of the Jetstream. To adjust the intensity, turn the air control lever clockwise to increase the intensity (air), or counter-clockwise to decrease the intensity (air).

Removal
  1. Turn the retaining ring counterclockwise to remove.
  2. Remove the nozzle and seat ring.
  3. Using a socket, remove the nozzle from the rear wall fitting.
  4. Remove the front wall fitting.
  5. Access the rear portion of the shell.
  6. NOTE: Removal of wood and foam may be required.
  7. Remove the rear wall fitting assembly from the spa's plumbing.
  8. To replace the jetstream, reverse steps 1 to 7.
Specifications



Item Decripstion Part #
1A Cover Butterfly '94 34351
1B Jet Cover WMC '96 Grey 36222
2 Seat Ring 32872
3A Nozzle Standard Jet 10428
3B Jet Eyeball WMC Grey 36201
4 Wallfitting Front 32420
5 O-Ring 30482
6 Jet Tee Fixed W/O 71125
7 Oriface 32871
8 Jet Elbow 32423
