73812 Jet Rotary Face Warm Grey

Name: 73812 Jet Rotary Face Warm Grey
Brand: Watkins
SKU: 73812
Price: 30.18 USD
Availability: InStock

$30.18

In stock

SKU

73812

Add to Wish List

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

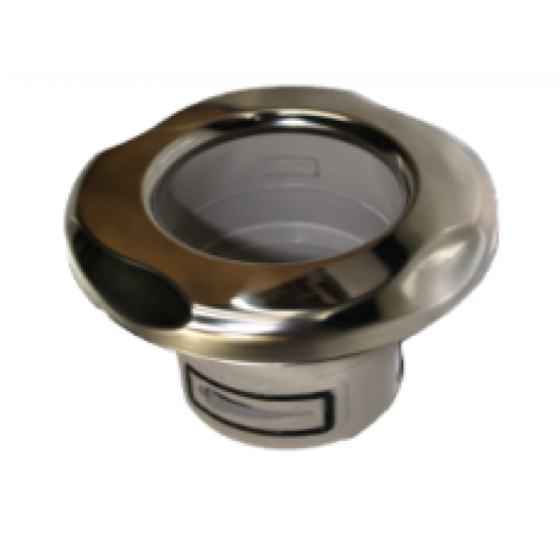

Jet Rotating Face

This part is a replacement rotating jet face for select Hot Spring hot tubs. Warm grey with stainless steel accents designed to increase water pressure when secured in your spa with screws.

The precision jet is made to hydro massage and target sore areas. Compatible with 2004 to 2011 Hot Spring Highlife spa models.

*Check specs section for full list of compatible models and years.

Specifications

Make	Model	Date Range
Hot Spring	Grandee	2006-2011
Hot Spring	Vista	2006-2011
Hot Spring	Envoy	2006-2011
Hot Spring	Vanguard	2006-2011
Hot Spring	Jetsetter	2006-2011
Hot Spring	Prodigy	2006-2011
Hot Spring	Sovereign	2006-2011
Hot Spring	Alccolade	2006
Hot Spring	Aria	2007-2011

Item	Description	part #
1	Kit Wall Fitting	71361
2A	Rotary Jet Face White	71363
2B	Rotary Jet Face C. Grey	71364
2C	Rotary Jet Face W Grey	73301
2D	Rotary Jet Face Taupe (use 73301)	73301
2E	Rotary Face Esc W grey	73812
2F	Rotary Face Esc C Grey	73900
3	Gasket Adj Rotary Jet	36534
4A	Rotary Jet White	71619
4B	Rotary Jet C Grey	71690
4C	Rotary Jet W Grey	73303
4D	Rotary Jet Taupe	71880
5A	Directional Jet White	71691
5B	Directional Jet C Grey	71692
5C	Directional Jet W Grey	73304
5D	Directional Jet Taupe	71881
6	Wall Fitting Front Adj Jet	35977
7	O ring Front Wall Adj	35988
8	O Ring Adj jet (small)	35986

Removal

Open or remove the spa cover.
Remove the jet by grasping the jet faceplate and pulling it away from the spa shell.
With jet in hand, two o-rings should be on the rear portion of the faceplate. If either o-ring is not present, inspect the inside of the front wallfitting and remove the missing o-ring.
To reinstall the jet, reverse steps 1 to 3.
Important: Make sure that the o-rings are properly seated.
