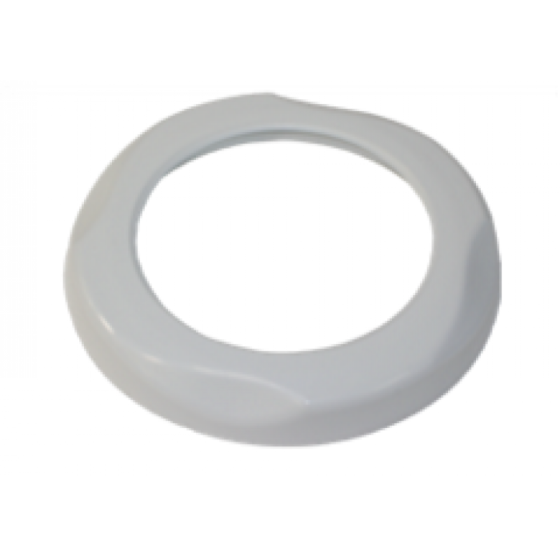

71921 Kit White Bezel
71921 Kit White Bezel

The spa light is visible through the light lens located in the bench seat of the spa. Turning the light dial located on the control panel controls the light intensity and activation.

71921 Kit White Light Lens Bezel is for the following models.



Make Model Date Range
Hot Spring Grandee 2000-2004
Hot Spring Vanguard 2001-2004
Hot Spring Jetsetter 2000-2004
Hot Spring Prodigy 2000-2004
Hot Spring Sovereign 2000-2004
Hot Spring Classic 2000
Hot Spring Landmark 2000-2003



Removal
  1. Disconnect power to the spa.
  2. Access the equipment compartment.
  3. Carefully lift the back of the bulb (with the socket assembly still attached) until the bottom of the bulb snaps out of the retainer.
  4. Slowly pull the bulb and socket assembly to the front of the equipment compartment. Note: It may be necessary to negotiate the assembly through the other equipment.
  5. Remove the old bulb and install the new one.
  6. To reinstall the bulb into the retainer, engage two of the three bulb retainers with the top of the bulb. After the top is engaged, carefully push down on the back of the bulb until it snaps into the third bulb retainer.
Specifications



Item Description Part #
1A Light Bezel White (Endural Spas) 71921
1B Light Bezel Cool Gray (Blue and Jade Spas) 71922
1C Light Bezel Warm Gray (Copper and Pearl Spas) 73300
1D Light Bezel Taupe 39884
1E Light Bezel Escutcheon (Azurite and SWM Spas) 73905**
1F Light Bezel Escutcheon (Other Colors) 73816**
2 Lens Only Replacement Kit 71830
3A Wallfitting Assy White (1989-1999 Only) 71923
3B Wallfitting Assy Cool Gray 9 (1989-1999 Only) 71924
4A Light Lens Retrofit Kit 1989-1999 (HSS White) 71832**
4B Light Lens Retrofit Kit 1989-1999 (HSS Gray) 71833**
5 Wallfitting 71925
* Lens Light Flat (pre-1989 Spas) 30810
* Devcon Repair Kit 72961
* Grip Style Glove 71945
