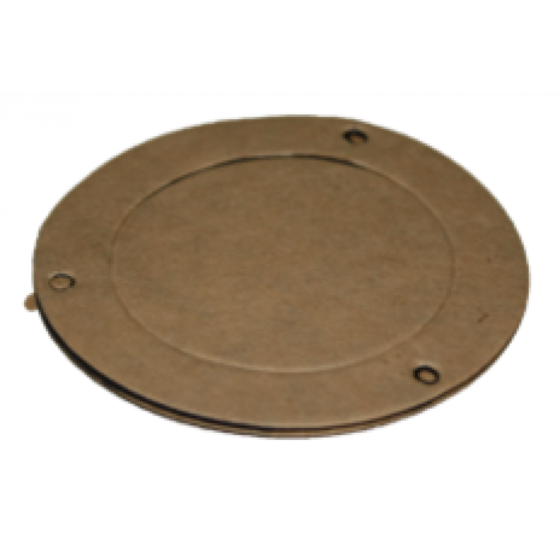

This part is a replacement air valve body gasket for select Hot Spring hot tubs. This piece allows for the mounting of the valve into the spa's shell.
Handle the valve body gasket with care during installation for long-lasting results. Compatible with a variety of 1993 to 2003 Hot Spring Highlife and Tiger River spa models.
*Check specs section for full list of compatible models and years.
Gently pry the screw cap upward and remove the phillips head screw.
Remove the lever.
Remove the bezel.
Using the Spanner tool, remove the air valve retainer.
Pull the air valve piston upward and out of the valve body. If the air valve piston is difficult to remove, place a cloth over the spline shaft and use pliers to gently pull the piston out of the valve body. Caution: Do not damage the spline on the piston shaft.
AIR CONTROL VALVE INSTALLATION
Using silicone grease, grease the inside of the valve body.
Grease (silicone grease) the three valve kit o-rings.
Install the two equal sized o-rings into the valve piston o-ring grooves. The grooves are located at the top and bottom of the piston barrel.
Apply a second coating of silicone grease on the outside of the o-rings.
Install the remaining o-ring into the o-ring retainer located around the air opening in the barrel of the piston. This is performed simultaneously by locating the o-ring in position and sliding the piston into the valve body.
Important: Ensure the o-ring is properly seated as the piston is being slid into the valve body.
Using the air valve lever, place the lever onto the spline shaft and press downward to seat the piston into the valve body. Once the piston is seated, turn the piston back and forth to check proper actuation. Once actuation is verified, turn the piston all the way clockwise until stopped.
Use the Spanner tool to install and tighten the piston retainer ring.
Install the bezel.
Install the lever in the clockwise most position. Check to make sure the lever travels the full length of the bezel opening.
