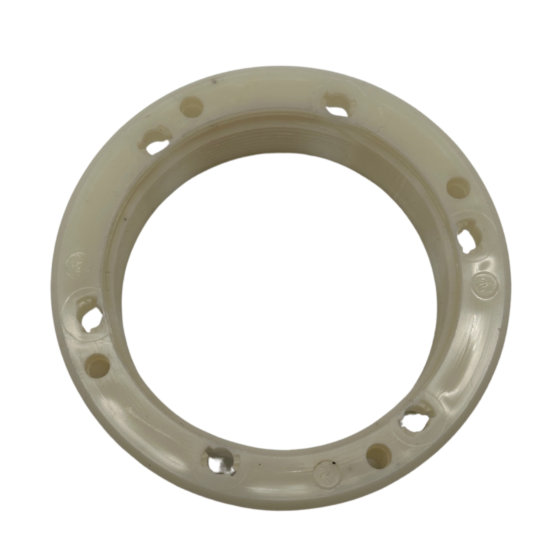

75117 2" Nut, Valve Diverter

Name: 75117 2" Nut, Valve Diverter
Brand: Watkins
SKU: 75117
Price: 8.54 USD
Availability: InStock

$8.54

In stock

SKU

75117

Add to Wish List

Description

Diverter Valve Nut

This part is a replacement 2" diverter valve nut for select Hot Spring hot tubs. Used to hold the collar of the valve against the back of the spa shell.

Secure the fitment on properly with the nut screws. Compatible with 1994 to current Hot Spring Highlife, Limelight, and Tiger River spa models.

*Check specs section for full list of compatible models and years.

Specifications

Item	Description	Part #
1	VALVE BODY	N/A
2	KIT,NUT,DIV,HSS 09	75117
3	O-RING 2IN DIVERTER 238EPDM	34319
4	KIT,COLLAR,DIVERTER VALVE	75116
5	CORE, DV 2PORT HSS 98-C	71494
6	SNAP RING 2IN DIVERTER	34350
7	HANDLE, DIVERTER VALVE CHARCOAL GRAY 20-C	78899

Item	Description	Part #
1	Body, Diverter Valve (2 Position)	37704
2	Nut, Diverter Valve	75117
3	O-ring	34319
4	Collar, Diverter Valve	75116
5	Diverter Valve Kit	70849
6a	Diverter Bezel 2IN 94	34310
6b	Diverter Bezel 2IN Grey	36220
7	Snap Ring, Diverter Valve	34350
8	Diverter Valve Kit Screw 8-16x1/2	33850
9a	Air Control And Diverter Valve Screw Cap White	33833
9b	Air Control And Diverter Valve Cap Gray Quarite	36224
10	Diverter Valve Lever White	34311

Item	Description	Part #
1a	Kit Lever Bezel White	73361
1b	Kit Lever Bezel WGry	73362
1c	Kit Lever Bezel CGry	73363
1d	Kit Lever Bezel IMD WGry	73820***
2	Kit Diverter Retrofit	71799*
4	Snap Ring	34350
5	Collar	75116
6	O-Ring (238) Or (Or Silicone Adhesive RTV	34319
7	Nut	75117
8	Body	37297
9A	Valve Kit	71495
9B	Kit Modified 6 Port Diverter Flow Restrictor	73769

Item	Description	Part #
1	Kit Lever Bezel Grey	73363
2	Kit Deverter Retrofit	71799
3	Bezel Lever Screw	*
4	Snap Ring	34350
5	Collar	75116
6	O-Ring (238) (or Sinilcone Adhesive RTV)	34319
7	Nut	75117
8	Body	32797
9	Valve Kit	71495
**	Snap Ring Tool	70825
