72606 Freshwater III Ozone System

$272.00
In stock
SKU
72606
Add to Wish List
In stock

Add to wishlist
72606 Freshwater III Ozone System
72606 Freshwater III Ozone System

Ozonators enhance the quality of the spa water when it is used to supplement the spa owner's regular water maintenance program.

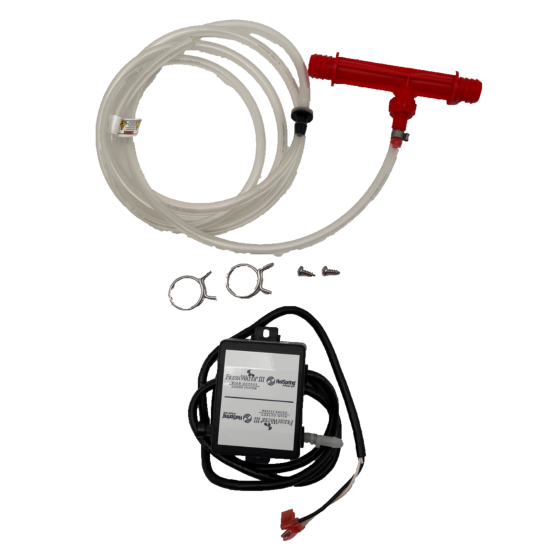

The FreshWater III ozonator is mounted within the spa equipment compartment and plugged directly into the control box. The control box contains a special ozone receptacle designed to power the ozonator.

The Fresh Water III ozonator can only be mounted on spas manufactured in 1995 and after. The ozone interface cable will only work with IQ2020 control boxes, however, hook-up of the interface cable is not required in order to run the ozonator.



  1. Disconnect power from the spa.
  2. Access the equipment compartment.
  3. Unplug the ozonator from the control box.
    CAUTION: If a liquid is present, carefully remove the tubing making sure not to let liquid contact skin. Liquid could be nitric acid, which may burn skin.
  4. Disconnect the tubing from the bottom of the ozonator.
  5. Remove the ozonator mounting screws.
  6. Remove the ozonator from the spa.
  7. To reinstall the ozonator, reverse steps 1 to 7.



72606 Freshwater III Ozone System is for the following models:



Make Model Date Range
Hot Spot RLX 1998-2002
Hot Spot SLX 1998-2002
Hot Spot SX 2011-2016
Hot Spot TX 2011-2016
Hot Spot Round 1995-1997
Hot Spot SLXtra 2001-2002
Hot Spot RE 1998-2002
Hot Spot SE 1998-2000





Specifications



Item Description Part #
1 Freshwater III (Complete Assy) 72602
1A Freshwater III (Complete Assy) 72606
1B Freshwater III (Unit Only) 73831
2 Tubing Ozone 72228
3 Injector Black 74078
3A Injector Red 74077
4 Ozone Check Valve 1044101
5 Kit Flow Restrictor 72699
6 Barb Hose 1318101
