73844 Kit Mini-Jet Wall Fitting

$9.41
In stock
SKU
73844
Add to Wish List
In stock

Add to wishlist
73844 Kit Mini-Jet Wall Fitting
73844 Kit Mini-Jet Wall Fitting

This Mini-Jet wall fitting kit is for 2006-current Hot Spring, Tiger River, Solana, and Hot Spot hot tub spas.

Precision Jets are a smaller, softer feeling jet. They are designed to target key muscle groups in the back and shoulders.

The Precision Jets are located in a jet cluster of ten, or above the Moto-Massage. The intensity of the Precision Jets is varied by the amount of air drawn into the jets. The air control valve controls airflow to all of the jets.

The Precision Jets consist of a face, retainer, eyeball/rotary, ring seat, wall fitting, o-ring, and a body.

Removal
  1. Open or remove the spa cover.
  2. Remove the mini-jet face by turning the jet face counterclockwise.
  3. Remove the retainer.
  4. Remove the eyeball or rotary.
  5. Remove the ring seat.
  6. Remove the wall fitting by turning it counterclockwise.
  7. Remove the o-ring.
  8. To reinstall the mini-jet, reverse steps 1 to 7.
Specifications









Item Description Part #
1 Kit Jet Body 73844
2A Kit Mini Jet Face CG 73840
2B Kit Mini Jet Face CG w/ESC 73898
2C Kit Mini Jet Face WG 73841
2D Kit Mini Jet Face WG W/ESC 73810
3A Kit Mini Jet Spinner Face CG 73846
3B Kit Mini Jet Spinner Face CG W/ESC 73914
3C Kit Mini Jet Spinner Face WG 73847
3D Kit Mini Jet Spinner Face CG W/ESC 73915





Item Description Part #
1 Kit Jet Body Assy 73844
2 Kit Minjet Face CG W/ESC 73898
3 Kit Minijet Spinner Face CG W/ESC 73914







Item Description Part #
1 Kit Jet Body 73844
2 Kit Minijet Face CG W/ESC 73898







Item Description Part #
1 Kit Jet Body Assy 73844
2A Kit Euro Face 11C No Bubbles 74842
2B Kit Euro Face 11C With Escutheon 74843
3A Kit Euro Pulse Face 11C No Bubbles 74844
3B Kit Euro Pulse Face 11C W/Escutcheon 74845





Item Description Part #
1 Kit Jet Body Assy 73844
2A Kit Euro Directional face 73839

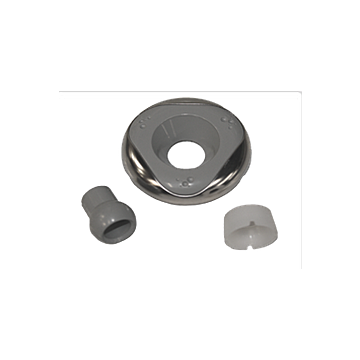

2B Kit Euro Directional Faces W/Escutcheon 73852
3A Kit Euro Pulse Face 73845
3B Kit Euro Pulse Face W/Escutcheon 73909











Item Description Part #
1 Kit Jet Body 73844
2 Kit Minijet Face 73841
3 Kit Minijet Face WG 73847
