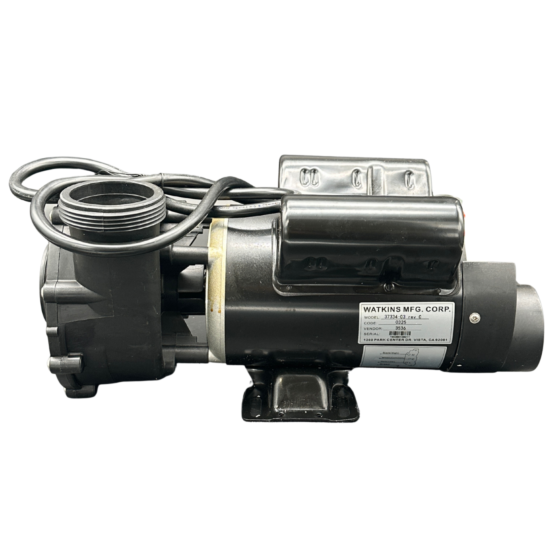

Hot Spring Spas 71894 Jet Pump - 1 Hp & 2 Spd

$590.33
In stock
SKU
71894
Add to Wish List
In stock

Add to wishlist
Hot Spring Spas 71894 Jet Pump - 1 Hp & 2 Spd
Hot Spring Spas 71894 Jet Pump - 1 Hp & 2 Spd

This pump will replace the previous model for the Hot Spot RLX and SLX models from 1998-2002, Solana TX models from 2005-current, and all RX models.

71894 Pump Complete 1 HP 2 SPD is for the following models:

Make Model Date Range
Hot Spot RLX 1998-2002
Hot Spot SLX 1998-2002
Hot Spot TX 2011-Current
Hot Spot SLXtra 2001-2002
Solana TX 2000-2010
Specifications





Item Description Part #
1 Motor 1.0 HP NA
2 Volute 48 Frame 71693
3 Shaft Seal 71447
4 Impellar 1.0 HP 71695
5 Wear Ring 71409
6 O-Ring Volute 71554
7 Cover Suction 71696
8 Drain Fitting w/o Ring 009060
9 Screw 8-32 x 5/8 (Volute) 71413
10 Shroud 71697
11 Screw 1/4-20 x 1-1/4 PH PLP PLTMS 30018
12 Washer FLTm 5/16 x 3/4 SS 30413
13 Kit Base Grommet (Quantitiy) 72349
* Cord 16/3, 2 SPD Pump NA
* Pump Complete 1 HP  2 SPD 71894

* Non-Illistrated Part
