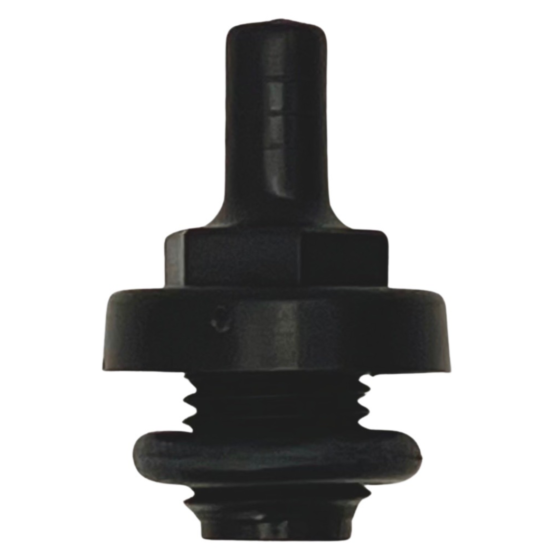

32267 Barbed Fitting for Wavemaster w/ O-Ring

In Stock

32267 Barbed Fitting for Wavemaster w/ O-Ring

Name: 32267 Barbed Fitting for Wavemaster w/ O-Ring
Brand: Watkins
SKU: 32267
Price: 6.04 USD
Availability: InStock

$6.04

This part is a replacement black barbed fitting with o-ring for select hot tubs and Endless Pool models. Drain the water in your pool and spa with a vinyl tube.

Usually Ships Within 2 Business Days

Buy with Confidence:

Customers who bought this also bought

Product Description

Barbed Fitting

This part is a replacement black barbed fitting with o-ring for select hot tubs and Endless Pool models. Drain the water in your pool and spa with a vinyl tube.

Easily threads into the suction cover. Compatible with 1989 to current Hot Spring Highlife, Limelight, Solana, Wavemaster, Tiger River and Endless Pool models.

*Check specs section for full list of compatible models and years.

Product Specifications

Watkins

Item	Description	Wavemaster 7000	Wavemaster 9000
1A	Motor 1 H.P	N/A	-
1B	Motor 2 H.P.	-	*******
1C	Motor 1993 Grandee ONLY	-	-
2	Bolt Hex	70395	70395
3	Washer Flat -3/8"	70396	70396
4A	Base	N/A	N/A
4B	Base Jet Pump	-	-
5	Seal Plate	70399	70399
6	Shaft Seal	70400	70400
7A	Impellor 1 H.P.	70401	-
7B	Impellor 2 H.P.	-	N/A
8	Diffusor	70408	70408
9	O-Ring	70409	70409
10	Screw Diffuser	70404	70404
11	O-Ring	70405	70405
12	Nut	N/A	N/A
13	Clamp	70406	70406
14	Bolt Hex	70394	70394
15	Cover	70407	70407
16	Flange Suction	70410	70410
17	Barbed Fitting	32267	32267
18	Clamo 1/4"	31134	31134
19	Vinyl Yubing 1/4"	70318	70318
20	Bolt Hex	70398	70398
21A	Fitting w/ O-ring 2" x 1-1/2"	71037	71037
21B	Fitting w/O-Ring 2" x 2"	71036	71036
22	PVC Flex Tubing 2"	70309	70309
23	Screw Im,pellor (Reverese Thread)	70403	70403
24	O-Ring	34447	34447
25	Hose Jet Pump Duct	N/A	N/A
26	Shroud	N/A	N/A
27	TailPiece Inlet	70411	70411
*	Pump Complete	-	34462

Item	Description	Wavemaster 7000	Wavemaster 9000
1	Motor Wave	*	*
2	Screw 10 x 1/2" PAN PHH	71034	71034
3	Bonding Lug Wave 7000 & 9000	71031	71031
4	Screw Hex 2/8-16 x 1"	70956	70956
5	Nut Hex 8-16 Wave	70955	70955
6	Washer Lock 3/8" Wave	70954	70954
7	Washer Flat 3/8" Wave	70953	70953
8	Seal Plate Wave	70941	70941
9	O-Ring Seal Plate Wave	70942	70942
10	Shaft Seal Waved 7000 & 9000	71030	71030
11	Gasket Impeller Screw Wave 9000	N/A	70945
12	Screw Impeller Wave 9000	N/A	70946
13	Diffuser Wave	70947	70947
14	O-Ring Diffuser Wave	70948	70948
15	Volute Wave	70960	70960
16	Drain Fitting Wave	32267	32267
17	Screw Hi-Lo 5/16-14 X 5/8 Wave 9000	N/A	N/A
18	Base Wave 9000	N/A	N/A
19	Motor Pad Wave 9000	N/A	N/A
20	Screw 8-32 x 7/8 RD HD Wave	70951	70951
21	Washer Lock #8 EXT Tooth Wave	70952	70952
22	Impeller Wave 7000 & 9000	71029	71029
23	Slinger Wave	70940	70940
24	Shroud Wave	34480	34480
25	Rubber Pad Wave 7000	71028	N/A
26	Base Steel Wave 7000	71027	N/A
27	Pad Base Rubber Wave 7000	N/A	N/A
28	Union Riser	35282	N/A
29	O-Ring Union Riser	N/A	N/A
*	Pump Wavemaster 7000	35522	N/A
*	Pump Wavemaster 9000 with Shroud	N/A	34462

Item	Description	Part #
1	JET PUMP, 2.5HP 1SP 230V 60HZ	72196
2A	WET END 2.5 HP 60HZ ST D	72996
2B	WET END 2.5 HP 60 HZ, L-03	77713
3	DRAIN FITTING, JET PUMP 1/4IN	32267
4A	UNION, PUMP	1119401
4B	2" SOC.90 DEG SWEEP PUMP UNION	301488
4C	429-020 CPLG 2IN SLXSL	30665
4D	O-RING, COMPRESSION FITTING	34447
4E	HOSE, PVC FLEX 2" X 36"	70308
4F	ITTING COMPRESS 2 W/O-RING	71036
4G	FITTING COMPRESS 2X1.5 W/ORING	71037
4H	FITTING COMPRE 1.5W/O-RNG	71038
4I	SPLIT NUT, 2" JET PUMP	72072
5A	SHAFT SEAL ASSEMBLY	71447
5B	SEAL, SHAFT LX JET PUMP #3536	77363
6	GROMMET, JET PUMP BASE 97-C	72349
7	WASHER FLT 5/16X3/4 SS	30413
8	SCW 1/4-20X1-1/2 MS PH PLP SS	30018
9	KIT, PUMP CORD 14/3 1SPD STRS	72462
10	EXHAUST HOSE, JET PUMP 01-C	72344

Item	Decsription	Part #
1A	Motor 1.65 HP X (Discontinued)	71399**
1B	Motor 1.5 HP XP (Part Not Available Use Following Part #)	71699
1C	Motor 2.0HP 1SP (Watkins Recommends Replacing entire Jet Pump)	**
1D	Motor 2.0HP 2SP (Watkins Recommends Replacing entire Jet Pump)	**
1E	Motor 2.5 HP 1SP	71402**
1F	Motor 2.5 HP 1SP (Watkins Recommends Replacing entire Jet Pump)	**
2A	Wet End Kit 1.65 HP	72994**
2B	Wet End Kit 1.5 HP	72993**
2C	Wet End Kit 2.0 HP 1SP	72995**
2D	Wet End Kit 2.0 HP 2SP	72995**
2E	Wet End Kit 2.5 HP 1 SP	72996**
2F	Wet End Kit 2.5 HP 2 SP	72996**
3	Kit Shaft Seal Assy	71447**
4A	Impeller 1.65 HP XP	71403**
4B	Impeller 1.5 HP XP (Part Not Available Use Following Part #)	71699
4C	Impeller 2.0HP 1SP (Watkins Recommends Replacing Entire Jet Pump)	**
5	Wear Ring XP	71409**
6	O-Ring Volute XP	71410**
7	Screw 8-32 X 5/8 (XP Volute)	71413
8	Drain Fitting W/O-Ring	32267
9	O-Ring Drain Nipple XP	N/A
10	Kit Base Grommet (Quantity 4)	72349
11	Washer FLT 5/16 x 3/4 SS	30413
12	Screw 1/4-20 x 1-1/4 PH PLP PLTMS	30018
13A	Manifold XP Emerson	N/A
13B	Manifold XP Magnetek	N/A
*	Cord 14/3 XP Pump	71416
*	Jet Pump 1.65 HP XP	71699
*	Jet Pump 1.5 HP XP (Part Not Available Replace Entire Jet Pump Use Part #)	71699
*	Jet Pump 2.0 HP 1SP	72194
*	Jet Pump 2.0 HP 2SP	72197
*	Jet Pump 2.5 HP 1SP	72196
*	Jet Pump 2.5 HP 2 SP	73023
