30488 Wall Fitting Nut
Add to Wish List
Wall Fitting Nut
This part is a replacement wall fitting nut for select hot tub models. Fitting made for where the standpipe screws into the spa.
Crafted in white to match your spa best. Compatible with 1989 to current Hot Spring Highlife, Hot Spot, Solana, and Tiger River spa models.
*Check specs section for full list of compatible models and years.
Specifications
|
| Item |
Description |
Part # |
| 1 |
Drain Wallfitting 3/4 Inch |
35911 |
| 2 |
Wallfitting, Rear: Wallfitting #1 Rear |
30490 |
| 3 |
O-ring: 0-ring 2.350inx.190in 30 Sil |
30482 |
| 4a |
Wallfitting #1 Front |
30488 |

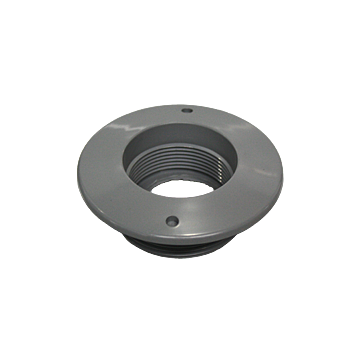

| 4b |
Wallfitting, Grey W/O Knockout |
71263 |
| 5a |
Standpipe Filter 9-3/4In |
31390 |
| 5b |
Standpipe, W/Restrictor |
76504 |
| 6 |
Filter, 65Sf Tri-X 9/Cs |
73250 |
| 7a |
Standpipe,Cap 3-1/2,Hss,White |
31389 |
| 7b |
Standpipe,Cap 3-1/2,Tr,Grey |
36513 |
| Item |
Description |
Part # |
| 1 |
Wallfitting Front |
30488 |
| 2 |
O-Ring Silicone |
30482 |
| 3 |
Wallfitting Rear |
30490 |
| 4 |
Wallfitting Rear Drain - 1/2" |
71128 |
| 5 |
Wallfitting Rear Drain - 3/4" |
35911 |
| 6A |
Coupler 3/4 |
30661 |
| 6B |
Clear Vinyl Tubing 1/2 |
70313 |
| 7 |
Flex Tubing 3/4" |
70312 |
| 8 |
Adapter |
30702 |
| 9 |
Drain Valve |
30592 |
| 10 |
Drain Cap |
30700 |
| 11A |
Heater Return Screen White |
72722 |
| 11B |
Heater Return Screen Taupe |
71886 |
| 11C |
Heater Return Screen Cool Gray |
72723 |
| 11D |
Heater Return Screen Warm Gray |
73296 |
| 12 |
Reducer Bushing 1-1/2" x 3/4" |
31420 |
| 13 |
Elbow Street 1-1/2" x 3/4" |
30650 |
| 14 |
Reducer Bushing 3/4"x 1/2" |
30675 |
| 15 |
Flex Tubing 1/2" |
70313 |
| 16 |
Barbed Adapter 1/2" |
31218 |
| 17 |
Sprin Clamp |
31228 |
| Item |
Description |
Part # |
| 1 |
Stand Pipe Cap |
36513 |
| 2 |
Standpipe Assembly |
74818 |
| 3 |
Front Wallfitiing |
30488 |
| 4 |
O Ring |
30482 |
| 5 |
Rear Wallfitiing |
71452 |
| 6 |
Fitler Cartridge 100 Sq Ft |
74817 |
| * |
Floating Weir |
71644 |
| Item |
Description |
Part # |
| 1 |
Cap Standpipe 3-/12" (grey) |
36513 |
| 2 |
Filter Cartridge 30 sq feet |
71825 |
| 3 |
Standpipe* |
76504 |
| 4 |
Wallfitting #1 Front |
30488 |
| 5 |
O-Ring red Wallfitting Front |
30482 |
| 6 |
Kit Rear Wallfitting |
30490 |
| ** |
Weir Ring Gray SX/RX Only |
71644 |
|
|
