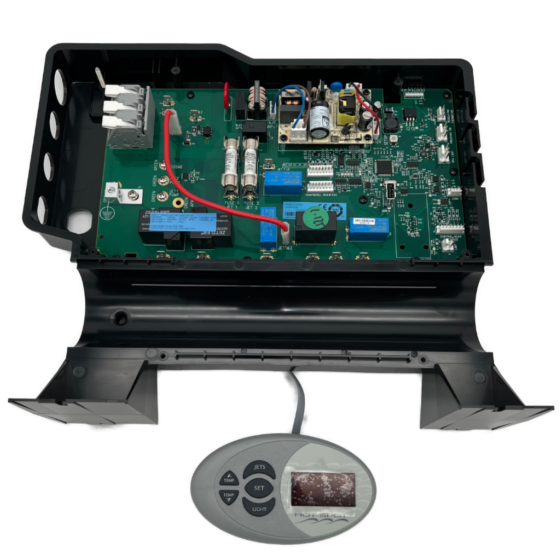

76843 Control Panel and 76840 Control Box
Not backwards compatible with old hot tub control panels/boxes. Compatible with select 2006 to 2015 Hot Spot and Solana spa models.
*Software requires update for install.
| Make |
Model |
Date Range |
| Hot Spot |
La Palma |
2008 - 2009 |
| Hot Spot |
Mallorca |
2006 - 2009 |
| Hot Spot |
Relay |
2010 - 2014 |
| Hot Spot |
Rhythm |
2011-2014 |
| Hot Spot |
Sorrento |
2006 - 2009 |
| Hot Spot |
SX |
2011 - 2015 |
| Hot Spot |
Tempo |
2010 - 2015 |
| Hot Spot |
Tobago |
2006 - 2007 |
| Hot Spot |
Trinidad |
2006 - 2009 |
| Hot Spot |
TX |
2011 - 2015 |
| Solana |
RX |
2006 - 2009 |
| Item |
Description |
Part # |
| 1 |
Control Box |
76840 |
| 2 |
Kit Control |
76843 |
| 3 |
Fuse 25A/ SC Time Delay |
71618 |
| 4 |
Control Thermistor |
72493 |
| 5 |
Split Nut Union 2" |
33761 |
| 6 |
Heater Assy |
73994 |
| 7 |
Pressure Switch |
73995 |
| 8 |
Hi-Limit Thermistor |
73992 |
| 9 |
Tailpiece Heater |
73905 |
| 10 |
O-Ring Tail Piece |
34447 |
| Item |
Description |
Part # |
| 1 |
Control Box HS Hawk DOM 12 |
76840 |
| 2 |
Control Panel HS Hawk CG 12 |
76843 |
| 3 |
Fuse 25A/300V SC Time Delay |
71618 |
| 4 |
Control Thermistor |
72493 |
| 5 |
Pressure Switch |
73995 |
| 6 |
Light Adaptor Eagle/Hawk |
76860 |
| 7 |
Hi-Limit Thermistor |
73992 |
| 8 |
Kit 12C Comm Hub 8 Port |
74150 |
| 9 |
Power Jumper 2 Pin |
39192
|
| Item |
Description |
Part # |
| 1 |
15 Amp/ 115v GFCI w/Cover |
37870 |
| 2 |
Control Box |
Use 76840
|
| 3 |
Fuse 25A/300V SC Time Delay |
71618 |
| 4 |
Control Thermistor |
72493 |
| 5 |
Split Nut Union 2" |
33761 |
| 6 |
Heater Assy |
73994 |
| 7 |
Presssure Switch |
73995 |
| 8 |
Hi-Limt Thermistor |
73992 |
| * |
Tail Piece Heater |
70905 |
| * |
O-Ring Tail Piece |
34447
|
|
