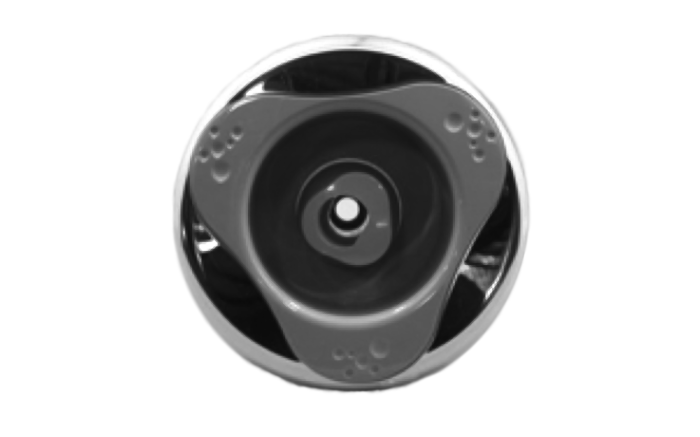

73849 Adjustable VSR Jet Insert With Escucheon

$24.49
In stock
SKU
73849
Add to Wish List
Out of stock

73849 Adjustable VSR Jet Insert With Escucheon
73849 Adjustable VSR Jet Insert With Escucheon
  • Item Discontinued Use Part Number 76193
  • The VSR is a powerful jet that combines water pressure and air to provide a substantial stream. The VSR are located in various points in the spa to provide a massage to specific areas of the body. Consult the home owners manual if further information is required.

Specifications

Replacement Instructions

  • Before starting the replacement instructions have the spa drained with the foam dug out exposing the rear wall fitting retaining ring that holds the jet in place.

    • Turn the retaining ring counterclockwise to remove.
    • Remove the nozzle and seat ring.
    • Remove the front wallfitting.
    • Access the rear portion of the shell. NOTE: Removal of wood and foam may still be required.
    • Remove the rear wallfitting assembly from the spa's plumbing and once separated pull front wall fitting through the water side.
    • To replace the jetstream, reverse the steps.
