72324 Air Injector Fascia
72324 Air Injector Fascia
Add to Wish List
Air Injector
This part is a replacement air injector for select Caldera hot tubs. Provides air to spa when air control has been activated.
Turn fascia counter clockwise and lift it off. The spa does not need drained to replace. Compatible with 2000 to 2001 Caldera and Hot Spot spa models.
*Check specs section for full list of compatible models and years.
Specifications
Make |
Model |
Date Range |
Caldera |
Tahitian |
2000-2001 |
Caldera |
Niagara |
2000-2001 |
Caldera |
Geneva |
2000-2001 |
Caldera |
Hawaiian |
2000-2001 |
Replacement Instructions
Spa does not have to be drained to change out the fascia.
1. Turn fascia counter clockwise and lift it off.
Item |
Description |
Part # |
1 |
Valve Air Injector Body |
022015 |
2 |
Jet Injector Cap Grey 10210 |
005093 |
3a |

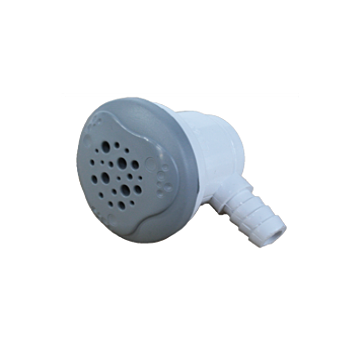

Air Injector Assy Grey |
72231 |
3b |
Air Injector Assy 11c |
74820 |
3c |
Air Injecote Assy W/Esc Grey |
73853 |
3d |
Air Injector Assy W/Esc 11c |
74821 |
4 |
Air Injector Fascia |
72324 |
* |
Air Injector Fascia W/Esc |
73854 |
|
