72231 Air Injector Assembly

$13.57
In stock
SKU
72231
Add to Wish List
In stock

Add to wishlist
72231 Air Injector Assembly
72231 Air Injector Assembly

Air Injector provides air to the spa when the air control has been activated.



Start with spa drained and empty of water.

1. Remove wood or panels and dig towards the area where the

air injector is located.

2. Remove clip and pull air hose from the barb end off.

3. Turn jet collar counter clockwise and remove.

4. Pull injector from the water side off. Remove all silicon from the rear wall fitting and and water side fitting.

install injector in reverse order. 3 to 1. Use Silicon on the front and rear wall fittings to keep it from leaking.

Specifications





Item Description Part #
1 Valve Air Injector Body 022015
2 Jet Injector Cap Grey 10210 005093
3a Air Injector Assy Grey 72231
3b Air Injector Assy 11c 74820
3c Air Injecote Assy W/Esc Grey 73853
3d Air Injector Assy W/Esc 11c 74821

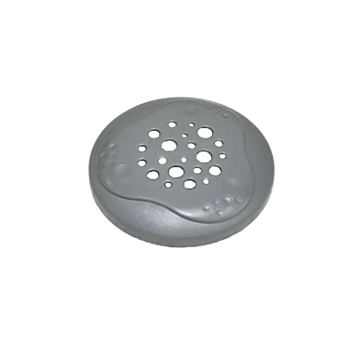

4 Air Injector Fascia 72324
* Air Injector Fascia W/Esc 73854
