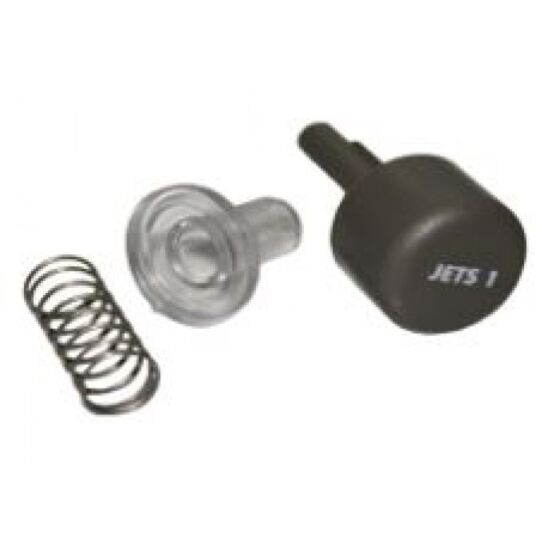

70673 Control Panel Pushbutton Assembly Grey
Grey Control Panel Pushbutton Assembly
The control panel consists of the knobs that spa owner uses to regulate the light and thermostat, as well as buttons to operate the jet pump(s). The control panel is attached to the spa by two screws.
The knobs and buttons are not attached to the control box. The knobs use D-shaft drivers to turn the shaft stems protruding from the control box. The buttons activate the pushbuttons by pushing against the pushbutton jet switches located on the control box.
The control panel can be locked using a sliding mechanical plate. The plate (located behind the control panel) slides into the locked position when a key is use to turn the lock. Locking the cover plate prevents unwanted tampering with the spa controls.
NOTE: The thermostat control knob must be fully seated for the lock to engage.
NOTE: In early models, the light control knob must be turned all the way off to engage the lock. The locking of the light control knob was discontinued.
