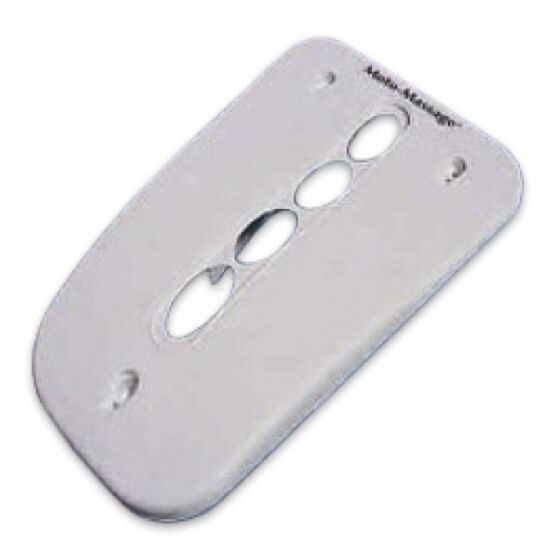

36079 Faceplate Moto White

$54.02
In stock
SKU
36079
Add to Wish List
In stock

Add to wishlist
36079 Faceplate Moto White
36079 Faceplate Moto White

White Moto Massage Faceplate for 1997- Current Hot Springs spa models



The Moto-Massage is a jet that automatically travels up and down to massage a person's back. The mixing of air and water in a jet along with a plyable spine causes the sweeping motion of the Moto-Massage. The intensity and speed of the Moto-Massage can be adjusted with the air control valve. The Moto-Massage is curved to fit the curvature of the back.

The Moto-Massage consists of a jet nozzle, water tube, threaded fitting, vertebrea and an air tube with o-ring. The Moto-Massage is held in-place by a special recess behind the spa shell. A shim is used to assist in proper movement of the Moto-Massage.

Specifications

Item Description Part Number
1a Facia Plate Moto White 36079
1b Facia Plate Moto C Grey 36511
1c Facia Plate Moto W Grey 73305
2 Screw 16x3 34366
3a Screw Cover Moto White 36144
3b Scrrew Cover Moto c grey 36510
3c Screw Cover Moto w grey 73306
3d Screw Cover Taupe 71896
4 Moto Jet Assembly white 73307
5 Air Tube with o oring 70307
6 Abraision cap (air tube) 30723
7 O ring moto air tube 33020
8a Extrusion shim MM Short 36143
8b Extrusion shim MM Long 36557
* Check Valve 38390

* Non Illustrated Part

Removal
  1. Open or remove the spa cover.
  2. Using a standard blade screwdriver, remove the three faceplate screw covers.
  3. Remove the three screws securing the Moto Massage faceplate to the spa.
  4. Remove the Moto Massage faceplate.
  5. Reach into the jet recess and locate the air tube. Gently remove this tube from the barbed nipple at the back of the recess.
  6. Grasping the base of the Moto Massage (end closest to the rear of the jet recess) gently turn the entire assembly counterclockwise until it can be removed.
  7. To reinstall the Moto Massage, reverse steps 1 to 6.

Important Instructions Regarding Moto Massage Alignment:

In order the for the Moto Massage to operate properly it is imperative that the Moto Massage nozzle be properly positioned after the assembly is tightened in the Moto niche.

To properly align, ensure that the two holes located on the nozzle face are position horizontally and that the Moto assembly travels vertically within the niche.
