35100 Control Panel Driver
35100 Control Panel Driver
Add to Wish List

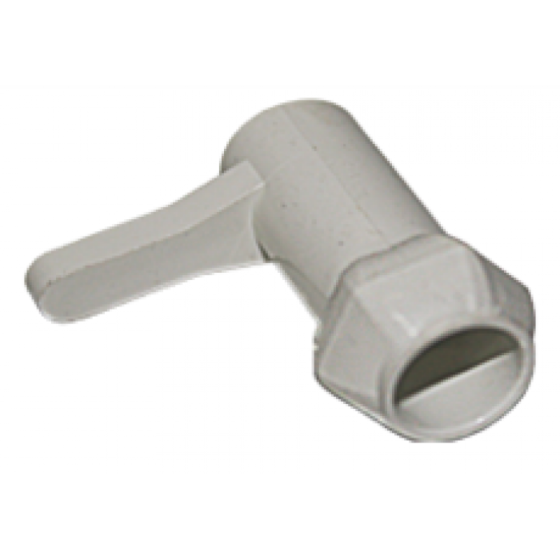

Control Panel Driver
This part is a replacement control panel driver for 1989 to 1997 Hot Spring spa models. The buttons activate the pushbuttons (either momentary or latching) by pushing against the pushbutton jet switches located on the control box.
*Check specs section for full list of compatible models and years.
Specifications
Removal
Turn the temperature and light knobs to the off position (counterclockwise).
Remove the two phillips head screws securing the control panel to the skirting.
Remove the four plastic screws located behind the coverplate.
Pull the control panel forward off the D-shaft drivers.
Remove the two D-shaft drivers.
CONTROL PANEL INSTALLATION
Place the D-shaft drivers onto the thermostat and light switch shafts.
Turn the both shafts to the off position (counterclockwise).
Ensure that the knobs of the control panel are still in the off position.
Install the control panel onto the D-shaft drivers.
Install the four plastic screws located behind the coverplate.
Install the two phillips head screws securing the control panel to the skirting. .
