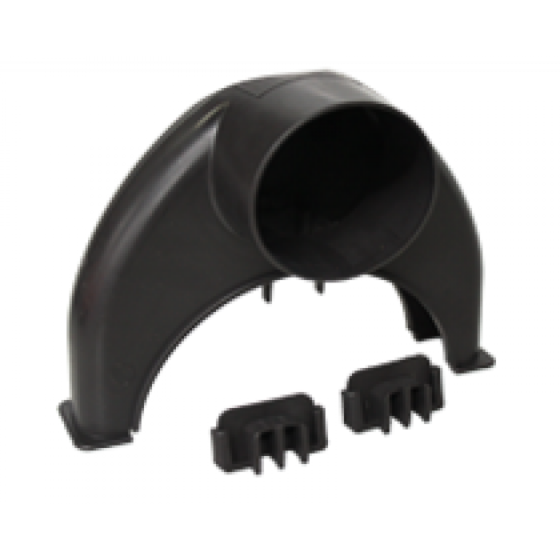

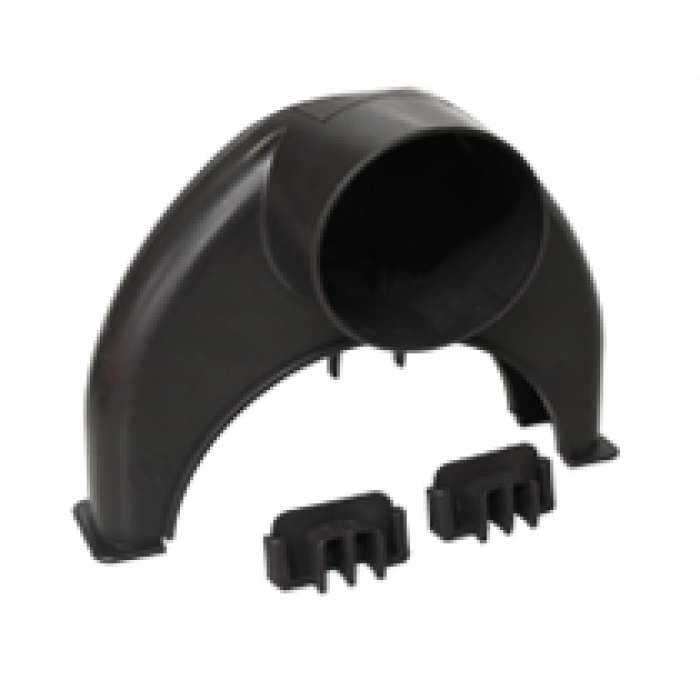

34480 Shroud

In Stock

34480 Shroud

$41.35

Shroud air vent for Wavemaster 7000 and 9000 jet pumps.

Usually Ships Within 2 Business Days

Buy with Confidence:

Product Description

Product Specifications

Watkins

Item	Description	Wavemaster 7000	Wavemaster 9000
1	Motor Wave	*	*
2	Screw 10 x 1/2" PAN PHH	71034	71034
3	Bonding Lug Wave 7000 & 9000	71031	71031
4	Screw Hex 2/8-16 x 1"	70956	70956
5	Nut Hex 8-16 Wave	70955	70955
6	Washer Lock 3/8" Wave	70954	70954
7	Washer Flat 3/8" Wave	70953	70953
8	Seal Plate Wave	70941	70941
9	O-Ring Seal Plate Wave	70942	70942
10	Shaft Seal Waved 7000 & 9000	71030	71030
11	Gasket Impeller Screw Wave 9000	N/A	70945
12	Screw Impeller Wave 9000	N/A	70946
13	Diffuser Wave	70947	70947
14	O-Ring Diffuser Wave	70948	70948
15	Volute Wave	70960	70960
16	Drain Fitting Wave	32267	32267
17	Screw Hi-Lo 5/16-14 X 5/8 Wave 9000	N/A	N/A
18	Base Wave 9000	N/A	N/A
19	Motor Pad Wave 9000	N/A	N/A
20	Screw 8-32 x 7/8 RD HD Wave	70951	70951
21	Washer Lock #8 EXT Tooth Wave	70952	70952
22	Impeller Wave 7000 & 9000	71029	71029
23	Slinger Wave	70940	70940
24	Shroud Wave	34480	34480
25	Rubber Pad Wave 7000	71028	N/A
26	Base Steel Wave 7000	71027	N/A
27	Pad Base Rubber Wave 7000	N/A	N/A
28	Union Riser	35282	N/A
29	O-Ring Union Riser	N/A	N/A
*	Pump Wavemaster 7000	35522	N/A
*	Pump Wavemaster 9000 with Shroud	N/A	34462
