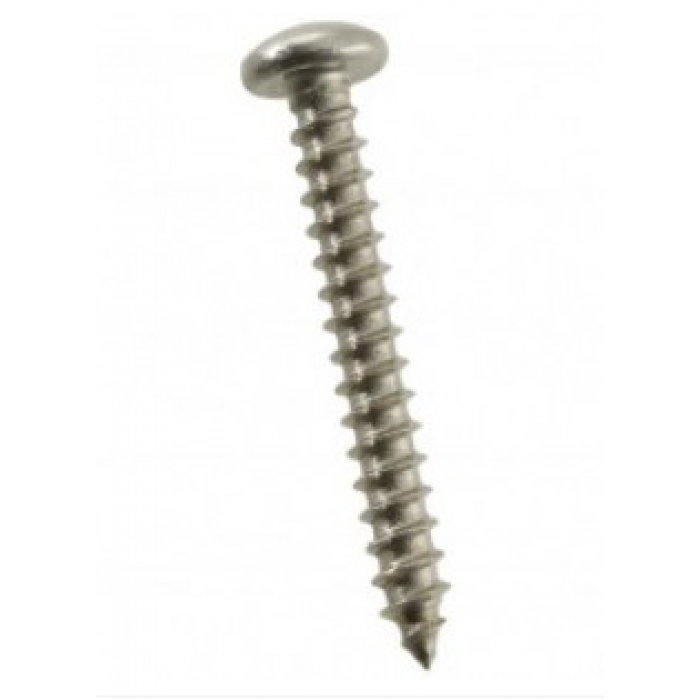

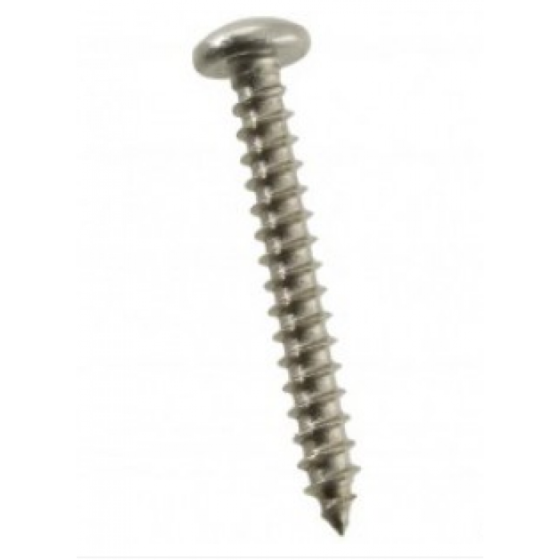

70404 Diffuser Screw

Name: 70404 Diffuser Screw
Brand: Watkins
SKU: 70404
Price: 0.66 USD
Availability: InStock

$0.66

This part is a replacement Phillips head diffuser screw for select hot tubs. Designed for use with the Wavemaster 7000 jet pump.

Usually Ships Within 2 Business Days

Buy with Confidence:

Product Description

Phillips Head Diffuser Screws

This part is a replacement Phillips head diffuser screw for select hot tubs. Designed for use with the Wavemaster 7000 jet pump.

Made in 8-32 x1" to secure parts down. Compatible with 1993 to 1996 Hot Spring Highlife spa models.

*Check specs section for full list of compatible models and years.

Product Specifications

Watkins

Item	Description	Wavemaster 7000	Wavemaster 9000
1A	Motor 1 H.P	N/A	-
1B	Motor 2 H.P.	-	*******
1C	Motor 1993 Grandee ONLY	-	-
2	Bolt Hex	70395	70395
3	Washer Flat -3/8"	70396	70396
4A	Base	N/A	N/A
4B	Base Jet Pump	-	-
5	Seal Plate	70399	70399
6	Shaft Seal	70400	70400
7A	Impellor 1 H.P.	70401	-
7B	Impellor 2 H.P.	-	N/A
8	Diffusor	70408	70408
9	O-Ring	70409	70409
10	Screw Diffuser	70404	70404
11	O-Ring	70405	70405
12	Nut	N/A	N/A
13	Clamp	70406	70406
14	Bolt Hex	70394	70394
15	Cover	70407	70407
16	Flange Suction	70410	70410
17	Barbed Fitting	32267	32267
18	Clamo 1/4"	31134	31134
19	Vinyl Yubing 1/4"	70318	70318
20	Bolt Hex	70398	70398
21A	Fitting w/ O-ring 2" x 1-1/2"	71037	71037
21B	Fitting w/O-Ring 2" x 2"	71036	71036
22	PVC Flex Tubing 2"	70309	70309
23	Screw Im,pellor (Reverese Thread)	70403	70403
24	O-Ring	34447	34447
25	Hose Jet Pump Duct	N/A	N/A
26	Shroud	N/A	N/A
27	TailPiece Inlet	70411	70411
*	Pump Complete	-	34462
