31423 Air Valve Pre 1993

Name: 31423 Air Valve Pre 1993
Brand: Watkins
SKU: 31423
Price: 4.39 USD
Availability: InStock

$4.39

In stock

SKU

31423

Add to Wish List

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

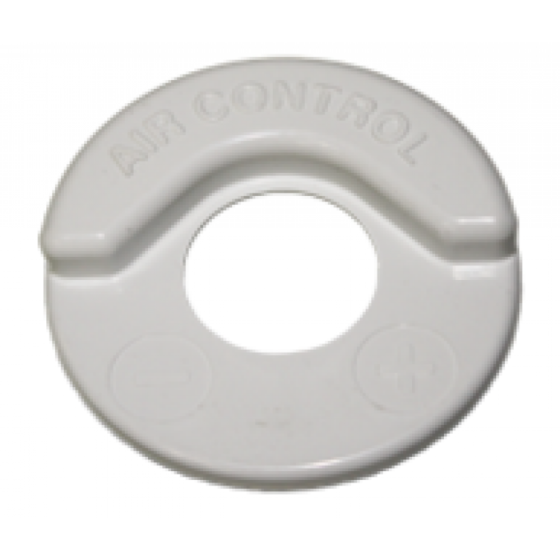

Air valve for pre 1993 Hot Spring models, 1/2 bezel.

The air control valve, located on the bartop, allows the spa user to control/adjust the amount of air that is supplied to all the hydrotherapy jets in the spa. The amount of air is controlled/adjusted by turning of the air lever. The more air, the stronger the jet pressure feels. The air is drawn from the equipment compartment. Air check valves, mounted under the bartop in the equipment compartment, provide the air intake for the air control valves.

The force of the water pressure rushing through the individual jets in a venturi effect inducts the air through the air valve.

The air control valves consist of a lever, bezel, piston driver, o-rings, screw, and valve body. The valve body connects jet's air intake with the air check valve (located in the equipment compartment). The piston driver opens and closes to allow air to flow to the jets. The lever is used to turn the piston driver.

Specifications

Removal

Put the air control lever in the closed (-) position.
Remove the sticker covering the air control valve. Be careful not to damage the knob, especially if using a knife.
This will reveal the mounting screw.
Remove the screw using a Phillips screwdriver.
Remove the lever.
Using a spanner wrench, unscrew the retainer.
Remove the piston and driver.
Remove the o-ring located in the bottom of the air valve body.

AIR VALVE INSTALLATION

Install the o-ring in the bottom of the air valve body.
Screw the driver and piston together and insert the assembly into valve body.
Screw the retainer into the valve body.
Note: Do not overtighten as the valve will bind.
Using your fingers, close the valve by rotating the driver clockwise until it stops.
Reinstall the bezel by aligning the two locating pins.
Install the lever by placing it on the piston. The lever should be positioned almost touching the bezel in the closed position.
While holding the assembly in place, install the mounting screw.
Start the jet pump and test the valve by turning the air on and off.
After it has been determined that the valve is working properly, install the corresponding color sticker.
