32397 Orifice Jetstream
Add to Wish List

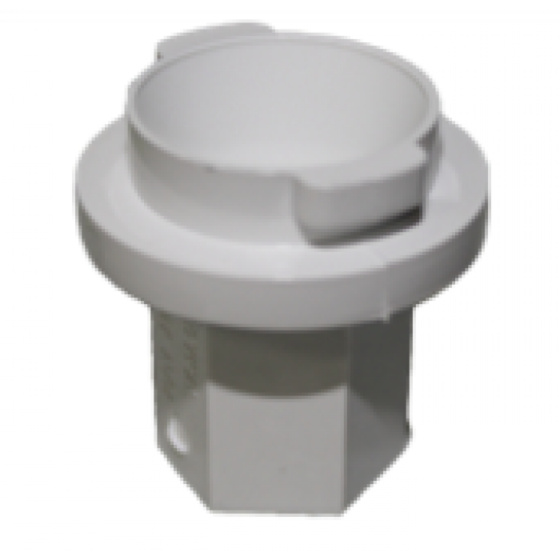

Orifice Jetstream
This is an orifice for the Jetstream Jet. This part is used to increase the amount of pressure of the flow of the jet.
This part is a replacement orifice jetstream for select Hot Spring hot tubs. Designed to increase the amount of pressure of the flow of the jet.
Create a higher pressured water flow. Compatible with 1991 to 2011 Hot Spring Highlife and Tiger River spa models.
*Check specs section for full list of compatible models and years.
Specifications
Item |
Description |
Part # |
1A |
Face Bezel Jetstream White |
36512 |
1B |
Face Bezel Jetstream C.Gry |
36763 |
1C |
Face Bezel Jetstream W.Gry |
73309 |
1D |
Face Bezel Jestream Taupe |
39879 |
1E |
Face Bezel Jetstream Escutch WGry |
73813 |
1F |
Face Bezel Jetstream Escutch CGry |
73901 |
2A |
Eyeball Insert Assy White |
70723 |
2B |
Eyeball Insert Assy CGry |
72725 |
2C |
Eyeball Insert Assy WGry |
73310 |
2D |
Eyeball Insert Assy Taupe |
72485 |
3 |
Eyeball Seal Ring |
32470 |
4A |
Wallfitting Front |
31987 |
4B |
Wallfitting Front Taupe |
- |
5 |
O Ring |
10437 |
6 |
Wallfitting Rear |
71126 |
7 |
Orifice |
32397 |
8 |
Venturi Tee |
32395 |
Removal
|
- Turn the retaining ring counterclockwise to remove.
- Remove the nozzle and seat ring.
- Remove the front wallfitting.
- Access the rear portion of the shell. NOTE: Removal of wood and foam may be required.
- Remove the rear wallfitting assembly from the spa's plumbing.
- To replace the jetstream, reverse steps 1 to 5.
|
|
