71342 Circ Timer

$112.20
In stock
SKU
71342
Add to Wish List
In stock

Add to wishlist
71342 Circ Timer
71342 Circ Timer

Circulation Timer

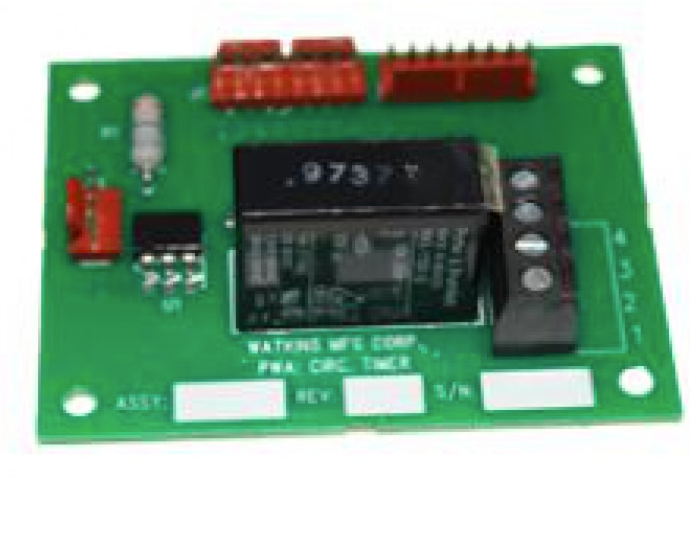

This part is a replacement circulation pump timer for select Hot Spring hot tubs. Consists of an on board relay and is part of the electronic timing circuit.

Opens the on-board relay for 8 hours a day in the summer timer mode. Compatible with a variety of 1996 Hot Spring Highlife and Tiger River spa models.

*Check specs section for full list of compatible models and years.

Specifications

Specifications:

  • Relay 12 volt DC coil
  • Operation 5 volt DC



Removal
  1. Disconnect power to the spa.
  2. Access the equipment compartment.
  3. Remove the control box.
  4. Locate the circulation timer board.
  5. Remove the two wire harnesses from J1 and J2 of the circulation timer board.
  6. Identify the four standoffs holding the board in place.
  7. With a pair of needle nose pliers, squeeze the end of each standoff while gently pulling the board upward until the board is free from all four standoffs.
  8. Remove the wire harness from J3 of the circulation timer board.
  9. Gently lift the circulation timer board so the screws in the terminal block are visible.
  10. Denote the location of each colored wire. It is imperative that the wires are replaced in the same locations on the new board.
  11. Using a small slotted screwdriver, loosen each screw until the wire can be pulled from the terminal block.
    Tip: For ease of replacement, remove only one wire at a time and place it in the proper location on the new board prior to removing any subsequent wires.
  12. To reinstall the circulation timer board, reverse steps 1 to 11.
