Used Hot Spring 73023 Wavemaster Two Speed Jet Pump - 2.5 Hp

Out of stock

Used Hot Spring 73023 Wavemaster Two Speed Jet Pump - 2.5 Hp

Name: Used Hot Spring 73023 Wavemaster Two Speed Jet Pump - 2.5 Hp
Brand: Hot Spring Wavemaster
SKU: u73023
Price: 249.00 USD
Availability: OutOfStock

$249.00

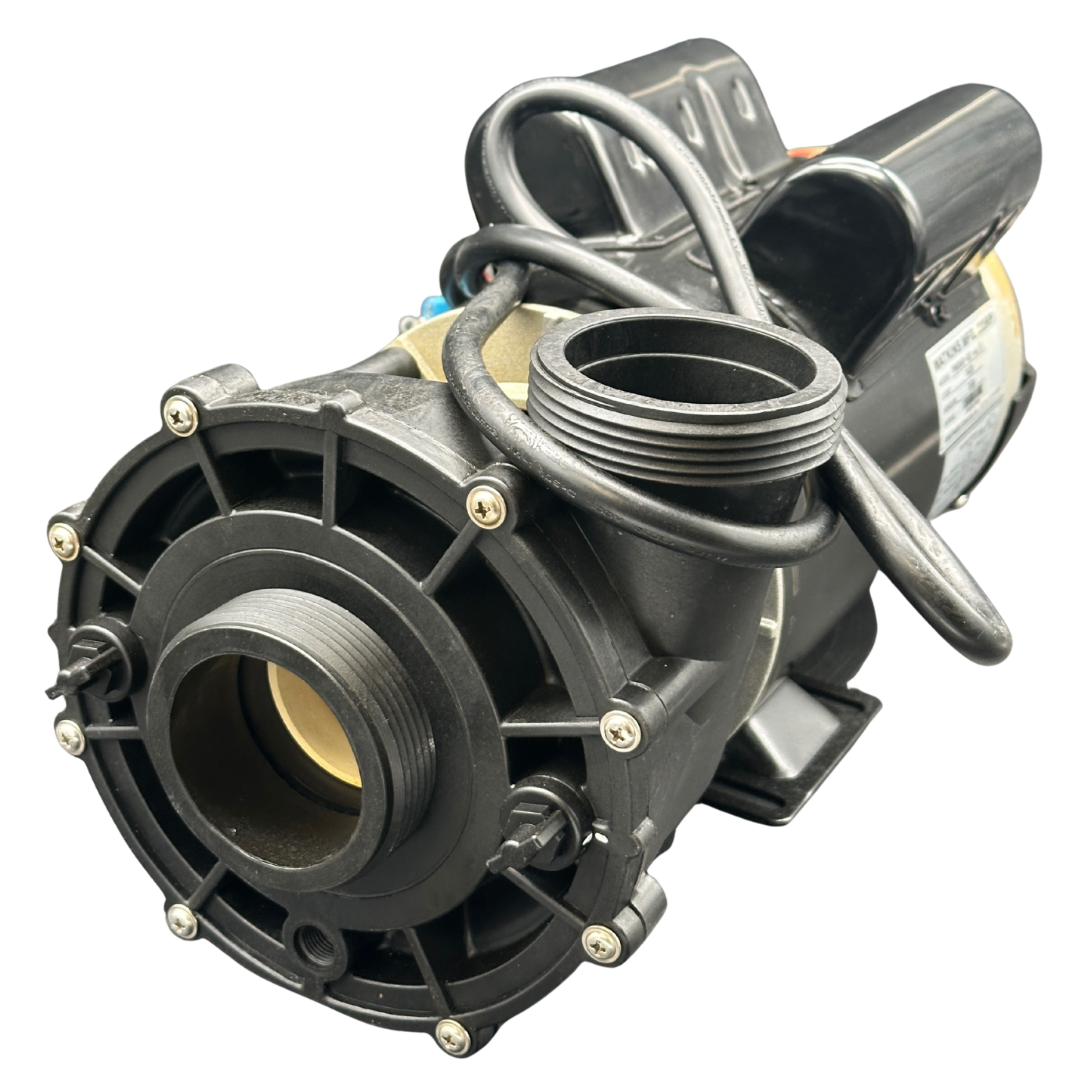

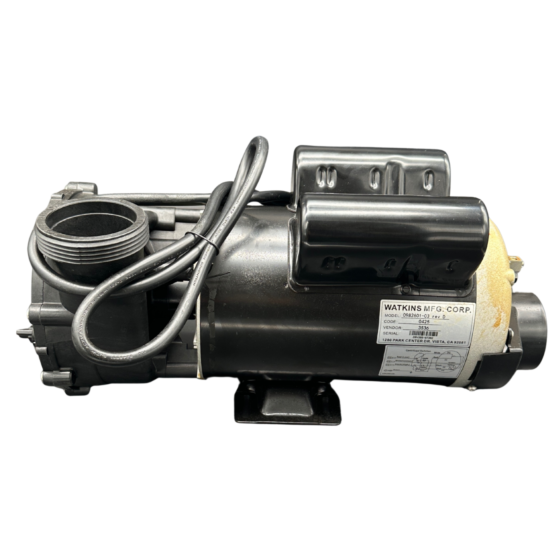

This part is a used 230V Wavemaster pump 9200 for select Freeflow hot tub models. Built with a bleedline nipple and drain plug to regulate water flow throughout the hot tub at 2 speed.

Usually Ships Within 2 Business Days

Buy with Confidence:

Product Description

Used Wavemaster Pump, 60HZ

This part is a 230V Wavemaster pump 9200 for select Freeflow hot tub models. Built with a bleedline nipple and drain plug to regulate water flow throughout the hot tub at 2 speed.

Takes wet ends 77713 (vendor code 3536) or 72996 (vendor code 4081)

Once your 2.5 HP pump is installed, enjoy relaxing in your spa again. Compatible with 2004 to current Hot Spring Highlife, Hot Spot, Limelight, Solana, and Tiger River spa models and Endless Pool models.

*Check specs section for full list of compatible models and years.

Product Specifications

Hot Spring Wavemaster

Make	Model	Date Range
Hot Spring	Grandee	2005-Current
Hot Spring	Grandee NXT	2014-Current
Hot Spring	Sovereign	2014-Current
Hot Spring	Accolade	2005-2006
Tiger River	Bengal Model MM	2005-2010
Hot Spot	Tempo	2013-2015
Hot Spot	La Palma	2008-2009
Caldera	Tahitian	2002-Current
Caldera	Niagara	2002-Current
Caldera	Geneva	2002-Current
Caldera	Cantabria	2009-Current
Caldera	Palatino	2013-2015
Caldera	C 30	2006-2009
Caldera	C 45	2006-2009
Limelight	Pulse	2008-Current
Limelight	Gleam	2013-Current
Endless Pools	X200-50	2016-Current
Endless Pools	X500-50	2016-Current

Item	Decsription	Part #
1A	Motor 1.65 HP X (Discontinued)	71399**
1B	Motor 1.5 HP XP (Part Not Available Use Following Part #)	71699
1C	Motor 2.0HP 1SP (Watkins Recommends Replacing entire Jet Pump)	**
1D	Motor 2.0HP 2SP (Watkins Recommends Replacing entire Jet Pump)	**
1E	Motor 2.5 HP 1SP	71402**
1F	Motor 2.5 HP 1SP (Watkins Recommends Replacing entire Jet Pump)	**
2A	Wet End Kit 1.65 HP	72994**
2B	Wet End Kit 1.5 HP	72993**
2C	Wet End Kit 2.0 HP 1SP	72995**
2D	Wet End Kit 2.0 HP 2SP	72995**
2E	Wet End Kit 2.5 HP 1 SP	72996**
2F	Wet End Kit 2.5 HP 2 SP	72996**
3	Kit Shaft Seal Assy	71447**
4A	Impeller 1.65 HP XP	71403**
4B	Impeller 1.5 HP XP (Part Not Available Use Following Part #)	71699
4C	Impeller 2.0HP 1SP (Watkins Recommends Replacing Entire Jet Pump)	**
5	Wear Ring XP	71409**
6	O-Ring Volute XP	71410**
7	Screw 8-32 X 5/8 (XP Volute)	71413
8	Drain Fitting W/O-Ring	32267
9	O-Ring Drain Nipple XP	N/A
10	Kit Base Grommet (Quantity 4)	72349
11	Washer FLT 5/16 x 3/4 SS	30413
12	Screw 1/4-20 x 1-1/4 PH PLP PLTMS	30018
13A	Manifold XP Emerson	N/A
13B	Manifold XP Magnetek	N/A
*	Cord 14/3 XP Pump	71416
*	Jet Pump 1.65 HP XP	71699
*	Jet Pump 1.5 HP XP (Part Not Available Replace Entire Jet Pump Use Part #)	71699
*	Jet Pump 2.0 HP 1SP	72194
*	Jet Pump 2.0 HP 2SP	72197
*	Jet Pump 2.5 HP 1SP	72196
*	Jet Pump 2.5 HP 2 SP	73023

Item	Description	Part #
1	JET PUMP, 2.5HP 2SP 230V 60HZ	73023
2A	WET END 2.5 HP 60HZ ST D	72996
2B	WET END 2.5 HP 60 HZ, L-03	77713
3	DRAIN FITTING, JET PUMP 1/4IN	32267
4A	UNION, PUMP	1119401
4B	2" SOC.90 DEG SWEEP PUMP UNION	301488
4C	429-020 CPLG 2IN SLXSL	30665
4D	O-RING, COMPRESSION FITTING	34447
4E	HOSE, PVC FLEX 2" X 36"	70308
4F	ITTING COMPRESS 2 W/O-RING	71036
4G	FITTING COMPRESS 2X1.5 W/ORING	71037
4H	FITTING COMPRE 1.5W/O-RNG	71038
4I	SPLIT NUT, 2" JET PUMP	72072
5A	SHAFT SEAL ASSEMBLY	71447
5B	SEAL, SHAFT LX JET PUMP #3536	77363
6	GROMMET, JET PUMP BASE 97-C	72349
7	WASHER FLT 5/16X3/4 SS	30413
8	SCW 1/4-20X1-1/2 MS PH PLP SS	30018
9	KIT, PUMP CORD 14/3 1SPD STRS	72462
10	EXHAUST HOSE, JET PUMP 01-C	72344
