39193 Control Power Jumper 3 Pin
Add to Wish List

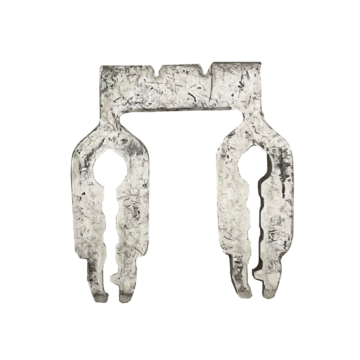

Control Power Jumper, 3 Pin
This part is a replacement control power jumper with 3 pins for select Hot Spring hot tub models. Crafted for the heater relay board.
Install the jumper on top of the grey terminal block numbered 1 through 5. Compatible with 1994 to current Hot Spring Highlife, Limelight, and Tiger River spa models.
*Check specs section for full list of compatible models and years.
Specifications
Item Description Part #
1
Control Box Mounting Bracket
36018
2a
2 Pin Power Jumper Iq2020
39192
2b
3 Pin Power Jumper I Q 2020
39193
3
Screw 8-32X3/4 Th Ph SS/BO
36676
4
Heater Relay Board, Pug 50/60
77119
5
Strain Relief
36022
6
Clamp
30105
7
Bushing, Strain Relief 3/8"
30099
8
Plug, Hole
36043
9
Strain Relief, Small Circ Pump
30098
10
Kit, Receptacle Assy Ozone
72724
11
Plug, 0.5" Hole
36044
12
Fuse, 2A 250V Slo Blo
34934
13
Freshwater-2 Fuseholder
34506
14
Control Board, Pug 60hz
77087
15
Thermistor Assy Control EBIC
39205
16
Thermistor Assy Hi-Limit EBIC
39204
17
Jumper, Program 2-Pin
36021
18
Screw, 10-32x5/8, TH PH SS MS
36898
Item Description Part #
1
Kit CBA IQ2020 HSS
Use 78039
2
Kit Control Head HSS '09
Use 76844
3
Clamp Romex 3/4
30105
4
Plug Hole 0.875
36043
5
Bushing Strain Relief 3/8"
30099
6
Strain Releif 3/8" 7k-2
30098
7
Plug Hole 0.50"
36044
8
Thermostor Hi-Limit
39204
9
Thedrmostor Control
39205
10
Kit Heater Board Replacement
76071
11
Fuseholder
34506
12
Fuse 2 AMP 250V
34934
13
Program Jumper Shunt .100
36021
14
Kit 12C Comm HUB 8 Port
74150
15
Power Jumper 2 Pin
39192
16
Power Jumper 3 Pin
39193
Item Description Part #
1
Kit CBA Advent Orca Cal
76288
2
Kit Control Head Cal
76269
3
Clamp Romex 3/4"
30105
4
Plug Hole 0.875"
36043
5
Bushing Strain Releif 3/8"
30099
6a
Kit Pump Cord 14/4 2SPD STRS
72461
6b
Kit Pump Cord 14/3 1SPD STRS
72462
7
Strain Releif 3/8" 7k-2
30098
8
Cord Circ Pump
71434
9
Ozone Receptacle
72474
10
Thermistor Hi-Limit
72492
11
Thermistor Control
72493
12
Kit Heater Board Replacement
76071
13
Fuseholder
34506
14
Fuse 2 AMP 250V
34934
15
Program Jumper Shunt .100
36021
16
Kit 12C Comm Hub 8 Port
74150
17
Power Jumper 2 Pin
39192
18
Power Jumper 3 Pin
39193
Item Description Part #
1
MAIN BOARD
76998
2
JUMPER, POWER 2-PIN T-BLOCK, JUMPER, POWER 3-PIN T-BLOCK
39192 & 39193
3
HEATER RELAY BOARD
77118
4
STRAIN RELIEF, METAL CLAMP
30105
5
PLUG, 0.875" HOLE
36043
6a
STRAIN RELIEF, SMALL CIRC PUMP
30098
6b
STRAIN RELIEF, MEDIUM JET PUMP
30099
7
PLUG, 0.5" HOLE
36044
8
FUSE, 2A 250V SLO BLO
34934
9
FUSE HOLDER, CONTROL BOX 60HZ
34506
10
I2C COMM, 5-PORT
74150
11
THERMISTOR ASSY CONTROL EBIC
39205
12
THERMISTOR ASSY HI-LIMIT EBIC
39204
13
JUMPER, PROGRAM 2-PIN
36021
Item Description Part #
1 CONTROL BOARD,ADVENT ORCA 60HZ
77656
2 JUMPER, POWER 2-PIN T-BLOCK
39192
3 JUMPER, POWER 3-PIN T-BLOCK
39193
4 HEATER RELAY BOARD, ORCA 50/60
77118
5 STRAIN RELIEF, METAL CLAMP
30105
6 PLUG, 0.875" HOLE
36043
7
STRAIN RELIEF, SMALL CIRC PUMP
STRAIN RELIEF, MEDIUM JET PUMP
30098
30099
8 FUSE, 2A 250V SLO BLO
34934
9 FUSE HOLDER, CONTROL BOX 60HZ
34506
10 I2C COMM, 5-PORT
74150
11 THERMISTOR, CONTROL BULLET
72493
12 THERMISTOR, HI LIMIT ADVENT
72492
13 JUMPER, PROGRAM 2-PIN
36021
Item Description Part #
1
Kit CBA 1Q2020 HSS
78039
2
Kit Control Head LL
76845
3
Clamp Romex 3/4
30105
4
Plug Hole 0.875"
36043
5
Bushing Strain Releif 3/8"
30099
6
Strain Releif 3/8" 7k-2
30098
7
Plug Hole 0.50"
36044
8
Thermistor Hi-Limit
39204
9
Thermistor Control
39205
10
Kit Heater Board Replacement
77118
11
Fuseholder
34506
12
Fuse 2 Amp 250v
34934
13
Program Jumper Shunt .100
36021
14
Kit 12C Comm Hum 8 Port
74150
15
Power Jumper 2 Pin
39192
16
Power Jumper 3 Pin
39193
