77118 Heater Relay Board 2009-2012

Name: 77118 Heater Relay Board 2009-2012
Brand: Watkins
SKU: 77118
Price: 255.29 USD
Availability: InStock

$255.29

This part is a replacement IQ2020 heater relay board for select Hot Spring hot tubs. Power your IQ2020 equipment properly.

Usually Ships Within 2 Business Days

Buy with Confidence:

Customers who bought this also bought

$621.00

Out of stock

$11.01

Out of stock

Product Description

Heater Relay Board

This part is a replacement IQ2020 heater relay board for select Hot Spring hot tubs. Power your IQ2020 equipment properly.

Compatible with 2009 to 2012 Hot Spring Highlife, Limelight and Tiger River spa models.

*Check specs section for full list of compatible models and years.

Product Specifications

Watkins

Item	Description	Part #
1	Kit CBA IQ2020 HSS	76082
2	Kit Control Head HSS '09	74959
3	Clamp Romex 3/4	30105
4	Plug Hole 0.875	36043
5	Bushing Strain Relief 3/8"	30099
6	Strain Releif 3/8" 7k-2	30098
7	Plug Hole 0.50"	36044
8	Thermostor Hi-Limit	39525
9	Thedrmostor Control	39530
10	Kit Heater Board Replacement	76071
11	Fuseholder	34506
12	Fuse 2 AMP 250V	34934
13	Program Jumper Shunt .100	36021
14	Kit 12C Comm HUB 8 Port	74150
15	Power Jumper 2 Pin	39192
16	Power Jumper 3 Pin	39193

Item	Description	Part #
1	Kit CBA Advent Orca Cal	76288
2	Kit Control Head Cal	76269
3	Clamp Romex 3/4"	30105
4	Plug Hole 0.875"	36043
5	Bushing Strain Releif 3/8"	30099
6a	Kit Pump Cord 14/4 2SPD STRS	72461
6b	Kit Pump Cord 14/3 1SPD STRS	72462
7	Strain Releif 3/8" 7k-2	30098
8	Cord Circ Pump	71434
9	Ozone Receptacle	72474
10	Thermistor Hi-Limit	72492
11	Thermistor Control	72493
12	Kit Heater Board Replacement	76071
13	Fuseholder	34506
14	Fuse 2 AMP 250V	34934
15	Program Jumper Shunt .100	36021
16	Kit 12C Comm Hub 8 Port	74150
17	Power Jumper 2 Pin	39192
18	Power Jumper 3 Pin	39193

Item	Description	Part #
1	MAIN BOARD	76998
2	JUMPER, POWER 2-PIN T-BLOCK, JUMPER, POWER 3-PIN T-BLOCK	39192 & 39193
3	HEATER RELAY BOARD	77118
4	STRAIN RELIEF, METAL CLAMP	30105
5	PLUG, 0.875" HOLE	36043
6a	STRAIN RELIEF, SMALL CIRC PUMP	30098
6b	STRAIN RELIEF, MEDIUM JET PUMP	30099
7	PLUG, 0.5" HOLE	36044
8	FUSE, 2A 250V SLO BLO	34934
9	FUSE HOLDER, CONTROL BOX 60HZ	34506
10	I2C COMM, 5-PORT	74150
11	THERMISTOR ASSY CONTROL EBIC	39205
12	THERMISTOR ASSY HI-LIMIT EBIC	39204
13	JUMPER, PROGRAM 2-PIN	36021

Item	Description	Part #

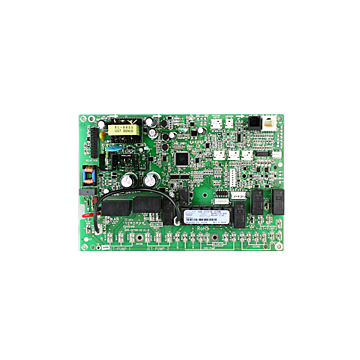

1	CONTROL BOARD,ADVENT ORCA 60HZ	77656
2	JUMPER, POWER 2-PIN T-BLOCK	39192
3	JUMPER, POWER 3-PIN T-BLOCK	39193
4	HEATER RELAY BOARD, ORCA 50/60	77118
5	STRAIN RELIEF, METAL CLAMP	30105
6	PLUG, 0.875" HOLE	36043
7	STRAIN RELIEF, SMALL CIRC PUMP STRAIN RELIEF, MEDIUM JET PUMP	30098 30099
8	FUSE, 2A 250V SLO BLO	34934
9	FUSE HOLDER, CONTROL BOX 60HZ	34506
10	I2C COMM, 5-PORT	74150
11	THERMISTOR, CONTROL BULLET	72493
12	THERMISTOR, HI LIMIT ADVENT	72492
13	JUMPER, PROGRAM 2-PIN	36021

Item	Description	Part #
1	Kit CBA 1Q2020 HSS	78039
2	Kit Control Head LL	76845
3	Clamp Romex 3/4	30105
4	Plug Hole 0.875"	36043
5	Bushing Strain Releif 3/8"	30099
6	Strain Releif 3/8" 7k-2	30098
7	Plug Hole 0.50"	36044
8	Thermistor Hi-Limit	39204
9	Thermistor Control	39205
10	Kit Heater Board Replacement	77118
11	Fuseholder	34506
12	Fuse 2 Amp 250v	34934
13	Program Jumper Shunt .100	36021
14	Kit 12C Comm Hum 8 Port	74150
15	Power Jumper 2 Pin	39192
16	Power Jumper 3 Pin	39193
