30703 Drain Adapter (# 5)

30703 Drain Adapter (# 5)

SKU: 30703

30703 Drain Adapter (# 5) is for the following models:



Make Model Date Range
Hot Spot Relay 2010-Current
Hot Spot Rhythm 2010-Current
Hot Spot Tempo 2010-Current
Hot Spot Sprint 2010-2011
Hot Spot Dash 2010-2011
Caldera Palatino 2010-Current
Caldera Marino 2010-Current
Caldera Vanto 2011-Current
Caldera Tarino 2013-Current
Caldera Cima 2010-2011
Caldera Lina 2010-2011
Endless Pools E2000-58 2017-Current
Endless Pools E500-52 2016-Current
Endless Pools E500-58 2016-Current
Endless Pools E700-52 2016-Current
Endless Pools E700-58 2016-Current
Endless Pools X200-50 2016-Current
Endless Pools X500-50 2016-Current

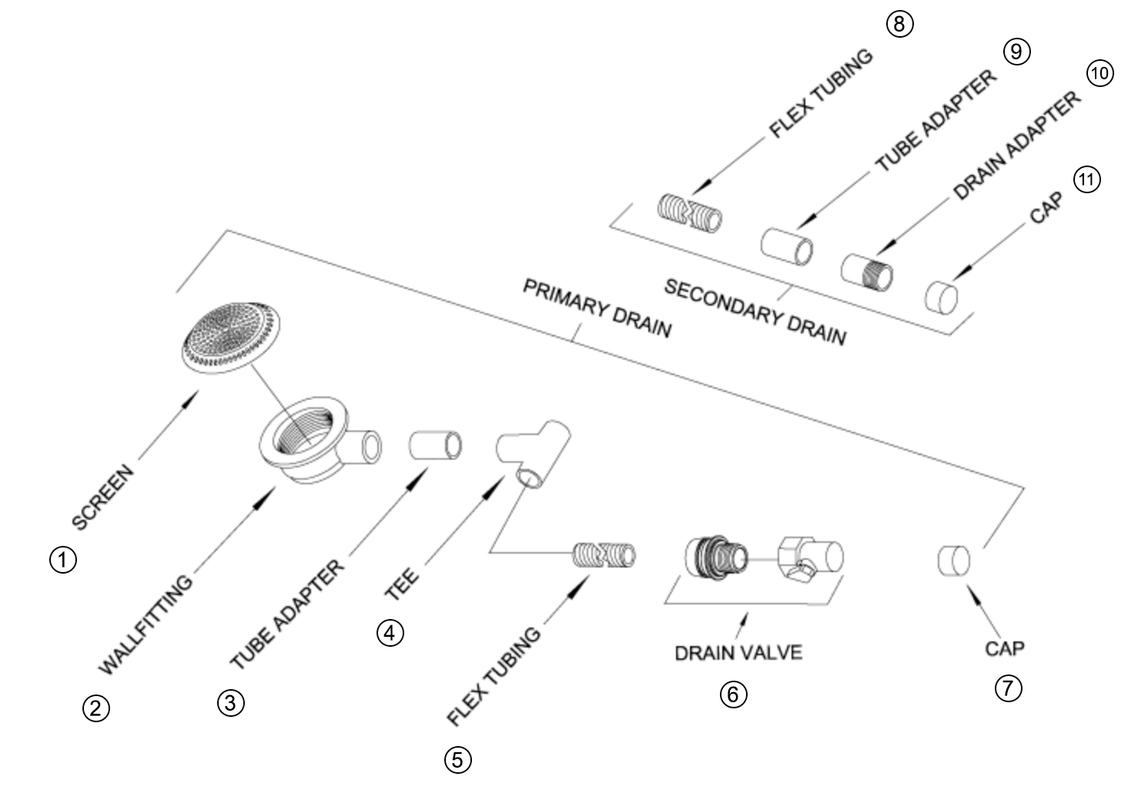

Item Description Part #
1a DRAIN SCREEN, CG HSS 96-C 72723
1b DRAIN SCREEN, HSS WG 04-C 73296
2 WALLFITTING, DRAIN, HSS & TR 35911
3 NIPPLE 3/4 X 2 PIPE SLIPXSLI 70346
4 401-007 TEE 3/4 SL 34751
5 HOSE ASSY PVC FLEX 3/4 70312
6 VALVE, DRAIN AR/VV L2-1N 76072
7 CAP, HOSE 3/4 FHT W/WSHR 30700
8 HOSE ASSY PVC FLEX 3/4 70312
9 NIPPLE 3/4 X 2 PIPE SLIPXSLI 70346
10 PF M66PB 3/4IN MALE HOSE ADPT 30703
11 CAP, HOSE 3/4 FHT W/WSHR 30700

Item Description Part #
1 DRAIN SCREEN, HSS 14-C 77226
2 WALLFITTING, DRAIN, HSS & TR 35911
3 NIPPLE 3/4 X 2 PIPE SLIPXSLI 70346
4 401-007 TEE 3/4 SL 34751
5 HOSE ASSY PVC FLEX 3/4 70312
6 PF M66PB 3/4IN MALE HOSE ADPT 30703
7 VALVE HOSE SHUTOFF, BLACK 30592
8 CAP, HOSE 3/4 FHT W/WSHR 30700
9 HOSE ASSY PVC FLEX 3/4 70312
10 NIPPLE 3/4 X 2 PIPE SLIPXSLI 70346
11 PF M66PB 3/4IN MALE HOSE ADPT 30703
12 CAP, HOSE 3/4 FHT W/WSHR 30700

Item Description Part #
1 Drain Wallfitting 3/4 Inch 35911
2 Bleed Line Nipple 1/4 Inch 30598
3 Flex Tubing 3/4 Inch 70312
4 Bleed Line Nipple 1/4 Inch 30598
5 Adapter 70346
6 Drain Valve 30592
7 Drain Cap With Washer 30700
8 Drain Valve Adapter 3/4 Inch 30703
9 Adapter 70346
10 Drain Valve Knob 33916
11 Drain Valve Knob Screw 32784
12 Coupling 3/4 Inch 30661

Item Description Part #
1 Cap 30700
2 Drain Valve 30592
3 Drain Adapter 3/4 30703
4 Adapter 70346
5 3/4 x 1/4 Adapter 34504
6 Tee 3/4 (SlipxSlipxSlip) 34751
7 Flex Tubing 3/4 70312
8 Wallfitting 35911
9 Drain Valve AR/VV 76072



Item Description Part #
1 Cap 30700
2 Hose Adapter 30703
3 PVC Pipe 3/4 x 2-1/2 L 70346
4 Drain Valve Complete 33937
5 Coupler 3/4 30661
6 Bleedline Nipple 30598
7 Flex Tubing 3/4 70312
8 Wallfitting 35911
9 Drain Handle 33916
10 Screw 32784
